Miniature Compression Load cell There are 12 products.

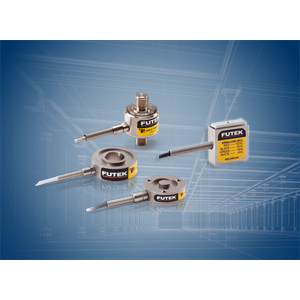

Miniature Compression Load cell

Discover our large range of miniature compression load cells, allowing to measure load from ± 2Kg to ± 22 T with an excellent accuracy.

3 kinds of miniature compression Load cell :
- « Button » miniature Load cell.
- « Force washers » or « Donut Load cell ».
- « Column » Load cell.
  • LLB130: Miniature Load Cell Button

    LLB130: Miniature Load Cell Button

    Subminiature Load Cell Button.  Capacities : 0 to 5, 10, 25, 50 Lb.  Rated output : 1.5 - 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel.

    Subminiature Load Cell Button.  Capacities : 0 to 5, 10, 25, 50 Lb.  Rated output...

    Subminiature Load Cell Button.  Capacities : 0 to 5, 10, 25, 50 Lb.  Rated output : 1.5 - 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel.

  • LLB210: Miniature Load Cell Button

    LLB210: Miniature Load Cell Button

       Subminiature Threaded Load Button. Capacities : 0 to 10, 25, 50 Lb. Rated output : 1.5 - 2 mV/V. Non Linearity : 0.5%. Material : Stainless steel. Cable output.

       Subminiature Threaded Load Button. Capacities : 0 to 10, 25, 50 Lb. Rated output :...

       Subminiature Threaded Load Button. Capacities : 0 to 10, 25, 50 Lb. Rated output : 1.5 - 2 mV/V. Non Linearity : 0.5%. Material : Stainless steel. Cable output.

  •  LLB250: Miniature Load Cell Button - 100 Lb ... 250 Lb

    LLB250: Miniature Load Cell Button - 100 Lb ... 250 Lb

      Subminiature Load Cell Button.  Capacities : 0 to 100, 150, 250 Lb.  Rated output : 1.5 - 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel.

      Subminiature Load Cell Button.  Capacities : 0 to 100, 150, 250 Lb.  Rated...

      Subminiature Load Cell Button.  Capacities : 0 to 100, 150, 250 Lb.  Rated output : 1.5 - 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel.

  • LLB300: Compression Miniature Load Cell - 25 Lb à 1000 Lb

    LLB300: Compression Miniature Load Cell - 25 Lb à 1000 Lb

      Subminiature Load Cell Button.  Capacities : 0 to 25, 50, 100, 250, 500, 1000 Lb.  Rated output : 1.5 - 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel.

      Subminiature Load Cell Button.  Capacities : 0 to 25, 50, 100, 250, 500, 1000...

      Subminiature Load Cell Button.  Capacities : 0 to 25, 50, 100, 250, 500, 1000 Lb.  Rated output : 1.5 - 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel....

  • LLB350: Compression Miniature Load Cell - 25 Lb ... 100 Lb

    LLB350: Compression Miniature Load Cell - 25 Lb ... 100 Lb

      Subminiature Load Cell Button. Capacities : 0 to 25, 50, 100 Lb. Rated output : 2 mV/V. Non Linearity : 0.5%. Material : Stainless steel. Cable output.

      Subminiature Load Cell Button. Capacities : 0 to 25, 50, 100 Lb. Rated output : 2...

      Subminiature Load Cell Button. Capacities : 0 to 25, 50, 100 Lb. Rated output : 2 mV/V. Non Linearity : 0.5%. Material : Stainless steel. Cable output.

  • LLB400: Miniature Compression Load Cell - 100 Lb ... 2500 Lb

    LLB400: Miniature Compression Load Cell - 100 Lb ... 2500 Lb

    Subminiature Load Cell Button.  Capacities : 0 to 100, 250, 500, 1000, 2000, 2500 Lb.  Rated output : 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel. Conductor Braided Shielded Teflon Cable.

    Subminiature Load Cell Button.  Capacities : 0 to 100, 250, 500, 1000, 2000,...

    Subminiature Load Cell Button.  Capacities : 0 to 100, 250, 500, 1000, 2000, 2500 Lb.  Rated output : 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel....

  • LLB450: Miniature Load Cell (High Capacity)  - 5000 Lb ... 10000 Lb

    LLB450: Miniature Load Cell (High Capacity) - 5000 Lb ... 10000 Lb

    Load Button Load Cell. Capacities : 0 to 5000, 10 000 Lb.  Rated output : 1.5 - 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel. Conductor Braided Shielded Teflon Cable.

    Load Button Load Cell. Capacities : 0 to 5000, 10 000 Lb.  Rated output : 1.5 -...

    Load Button Load Cell. Capacities : 0 to 5000, 10 000 Lb.  Rated output : 1.5 - 2 mV/V.  Non Linearity : 0.5%. Material : Stainless steel. Conductor Braided Shielded...

  • LTH300 : Donut compression Load Cell - 50 Lb ... 1000 Lb

    LTH300 : Donut compression Load Cell - 50 Lb ... 1000 Lb

    Compression Donut Load Cell.  Capacities : 0 to 50,100, 250, 500, 1000 Lb. Variable inside diameter to specify :  1/8, 3/16, 1/4, 5/16, 3/8''.   Rated output : 2 mV/V.  Non Linearity : 0.5%.  Material : Stainless steel. Teflon Cable output.

    Compression Donut Load Cell.  Capacities : 0 to 50,100, 250, 500, 1000 Lb....

    Compression Donut Load Cell.  Capacities : 0 to 50,100, 250, 500, 1000 Lb. Variable inside diameter to specify :  1/8, 3/16, 1/4, 5/16, 3/8''.   Rated output : 2 mV/V....

  • LTH350 : Donut compression Load Cell - 100 Lb ... 5000 Lb

    LTH350 : Donut compression Load Cell - 100 Lb ... 5000 Lb

    Compression Donut Load Cell.  Capacities : 0 to 100, 250, 500, 1000, 2000, 3000, 5000 Lb. Variable inside diameter to specify :  1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8''.  Rated output : 2 mV/V.  Non Linearity : 0.5%.  Material : Stainless steel. Teflon Cable output.

    Compression Donut Load Cell.  Capacities : 0 to 100, 250, 500, 1000, 2000, 3000,...

    Compression Donut Load Cell.  Capacities : 0 to 100, 250, 500, 1000, 2000, 3000, 5000 Lb. Variable inside diameter to specify :  1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16,...

  • LLW600: Force Washer Load Cell - 30 ... 50 KLb

    LLW600: Force Washer Load Cell - 30 ... 50 KLb

    High capacity miniature force washer load cell.  Capacities : 0 to 30 , 50 Klb.  Rated output : 2 mV/V.  Non Linearity : 0.5%. Safe Overload : 150%. Excitation :  18 VDC max.  Material : Stainless steel.

    High capacity miniature force washer load cell.  Capacities : 0 to 30 , 50 Klb....

    High capacity miniature force washer load cell.  Capacities : 0 to 30 , 50 Klb.  Rated output : 2 mV/V.  Non Linearity : 0.5%. Safe Overload : 150%. Excitation :  18 VDC...

  • LCA300: Miniature Compression Load Cell (High Capacity) - 2 ... 30 KLb

    LCA300: Miniature Compression Load Cell (High Capacity) - 2 ... 30 KLb

    Miniature Load Column Load Cell.  Capacities : 0 to 2, 3, 5, 7.5, 10, 20, 30 KLb.  Rated output : 2 mV/V.  Non Linearity : 1%. Material : Stainless steel. Teflon Cable output.

    Miniature Load Column Load Cell.  Capacities : 0 to 2, 3, 5, 7.5, 10, 20, 30...

    Miniature Load Column Load Cell.  Capacities : 0 to 2, 3, 5, 7.5, 10, 20, 30 KLb.  Rated output : 2 mV/V.  Non Linearity : 1%. Material : Stainless steel. Teflon...

  • 380: Co-Planar Beam Load Cell - from 0 to 7.5,..., 250 Kg

    380: Co-Planar Beam Load Cell - from 0 to 7.5,..., 250 Kg

      Low profile single-point planar beam design (Only 2.5–8 mm high).  Measuring Range: 7.5, 37.5, 50, 75, 150, 250 Kg.  Material: Aluminium.  Accuracy: 3000 & 4000 points. Environmental protection: IP65. Cable output: 1.5m.

      Low profile single-point planar beam design (Only 2.5–8 mm high).  Measuring Range:...

      Low profile single-point planar beam design (Only 2.5–8 mm high).  Measuring Range: 7.5, 37.5, 50, 75, 150, 250 Kg.  Material: Aluminium.  Accuracy: 3000 & 4000 points....
