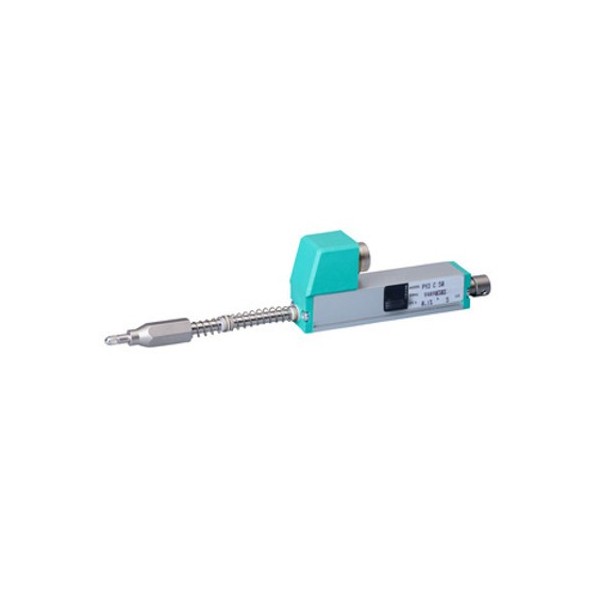

PY2 : Rectilinear displacement transducer with Spring Return from 0 to 10, ..., 100 mm.

  • Measuring range form 0 to 10, 25, 50, 75, 100 mm.
  • Double support of the control rod and return spring.
  • Tip with M2.5 thread and stainless steel ball.
  • Independent linearity up to ± 0.1%.
  • Infinite resolution.
  • Protection IP40.
Log in to your account to display prices
account_circleSend to a friend
PY2 : Rectilinear displacement transducer with Spring Return from 0 to 10, ..., 100 mm.

PY2 : Rectilinear displacement transducer with Spring Return from 0 to 10, ..., 100 mm.

  • Measuring range form 0 to 10, 25, 50, 75, 100 mm.
  • Double support of the control rod and return spring.
  • Tip with M2.5 thread and stainless steel ball.
  • Independent linearity up to ± 0.1%.
  • Infinite resolution.
  • Protection IP40.



Applications

> <

The side connection creates a through-rod structure with double rod support, guaranteeing greater overall strength of the transducer.
The return spring automatically returns the rod to zero position, making the transducer suitable for comparator applications. The tip with stainless steel ball is suitable for applications where the object to be measured is not subject to shifts transverse to the transducer axle. Ideal for checking the flatness or thickness of panels of various materials. Can also be used for valves or mechanical parts when the rod cannot be attached to the moving object.

PY2
