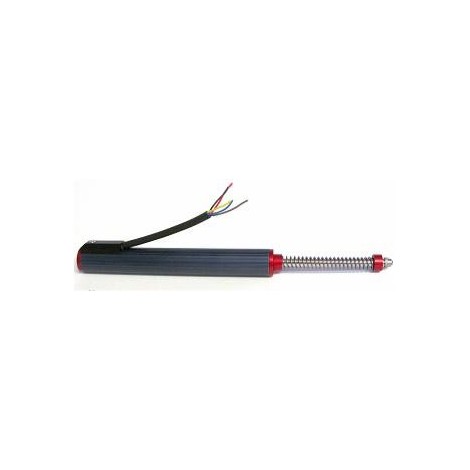

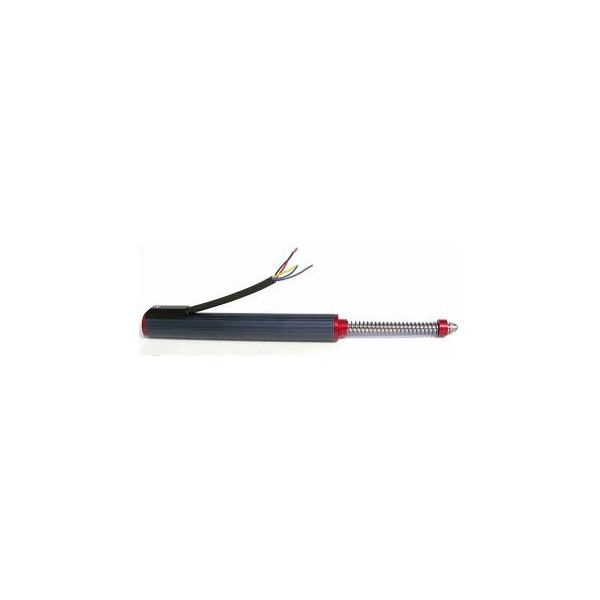

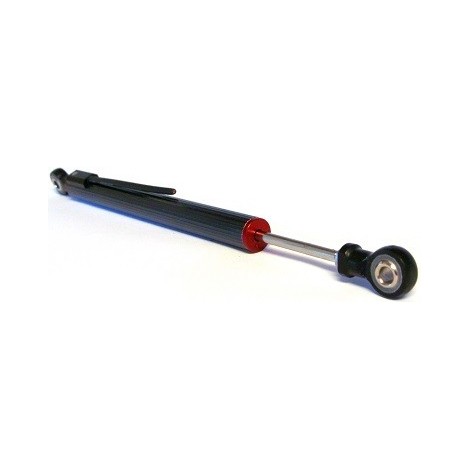

SM19: Heavy Duty Linear Potentiometer - 25,..., 300 mm

Measuring range: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm.
Material: Aluminium & Stainless steel.
Repeatability: ≤0.01mm.
Independent Linearity: ≤ +/- 0.5%.
Mechanical Life: > 25 Million Cycles.

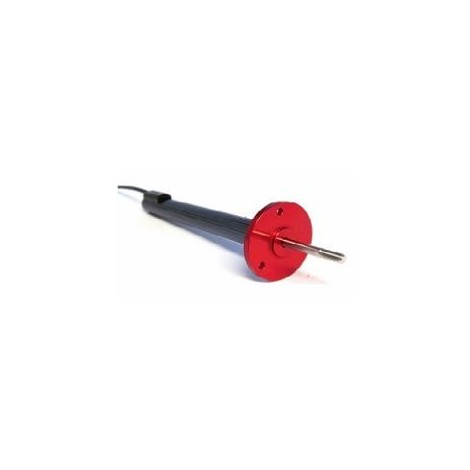

Customs Options Available: Dual Output, Flange Mount, Return Spring, IP65 & IP67.



Log in to your account to display prices
account_circleSend to a friend
SM19: Heavy Duty Linear Potentiometer - 25,..., 300 mm

SM19: Heavy Duty Linear Potentiometer - 25,..., 300 mm

Measuring range: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm.
Material: Aluminium & Stainless steel.
Repeatability: ≤0.01mm.
Independent Linearity: ≤ +/- 0.5%.
Mechanical Life: > 25 Million Cycles.
Customs Options Available: Dual Output, Flange Mount, Return Spring, IP65 & IP67.





Applications

> <

The SM19 series of Linear Potentiometers are designed to withstand the harsh environment of Industrial applications. Using proven ‘conductive plastic’ technology, the sensors offer high performance and reliability.
