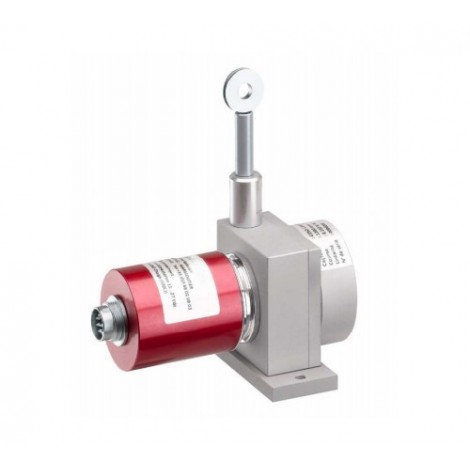

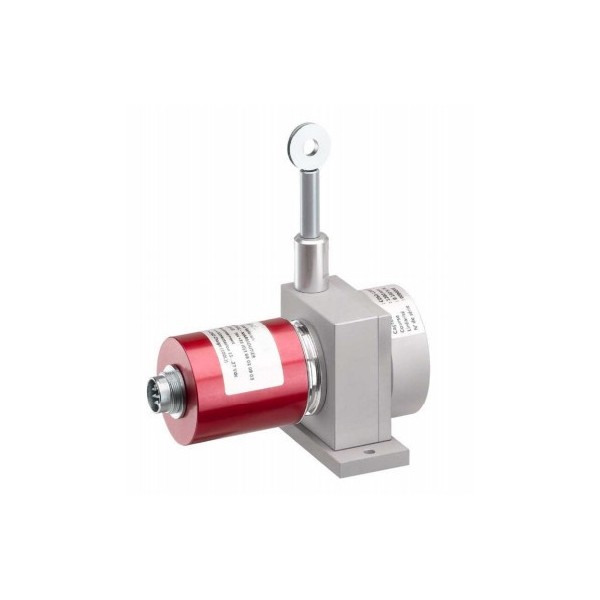

SMCD50: Cable Displacement Sensor - From 0 to 50, ..., 1200 mm.

Measuring range: 0 ... 50, 100, 250, 500, 750, 1000, 1200 mm.
Material: Aluminium & Stainless steel.
Potentiometric output signal: 1kΩ (other values on demand).
Analogic output (Option): 0...10V, 4...20mA.
Resolution: Quasi infinite.
Standard Linearity: 0.25% (Up to 0.1% in option).

Log in to your account to display prices
Options
account_circleSend to a friend
SMCD50: Cable Displacement Sensor - From 0 to 50, ..., 1200 mm.

SMCD50: Cable Displacement Sensor - From 0 to 50, ..., 1200 mm.

Measuring range: 0 ... 50, 100, 250, 500, 750, 1000, 1200 mm.
Material: Aluminium & Stainless steel.
Potentiometric output signal: 1kΩ (other values on demand).
Analogic output (Option): 0...10V, 4...20mA.
Resolution: Quasi infinite.
Standard Linearity: 0.25% (Up to 0.1% in option).
