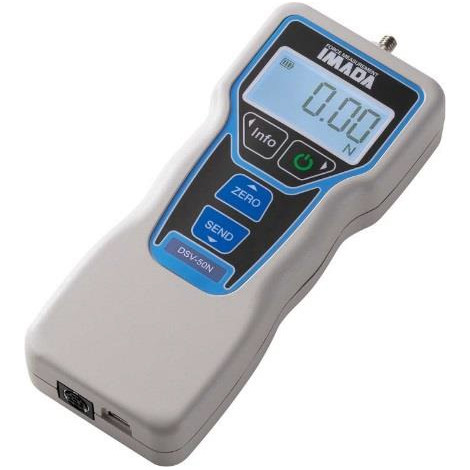

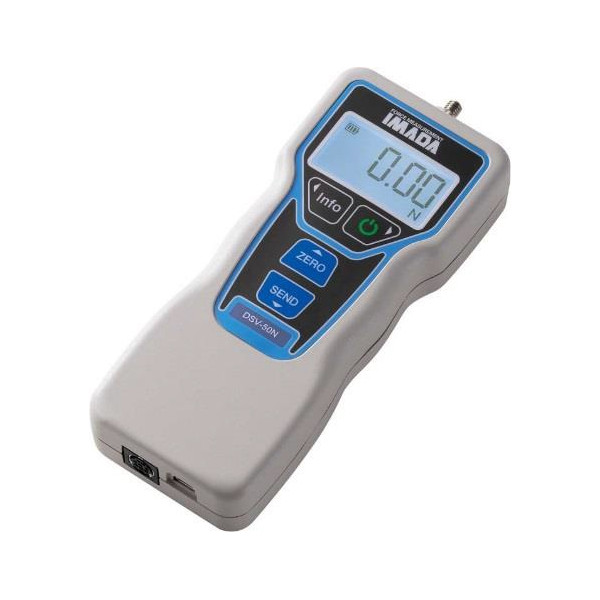

DS2 Digital Force Gauges +/-2, ..., +/- 1000N

 Digital Force Gauges for determination of compression and tension forces.
2 operation modes: real time and peak force.
Capacities : +/-2 N, ...,  1000 N.
Accuracy : 0.2% FS.
sampling rate of 1000 times/sec or 30 times/sec.
Display update time 10 mal/sec.
Output signal : RS 232 C, ±1V DC, Mitutoyo Digimatic.
Manufacturers calibration report is included.
Full set of accessories included.

Log in to your account to display prices
Capacité
account_circleSend to a friend
DS2 Digital Force Gauges +/-2, ..., +/- 1000N

DS2 Digital Force Gauges +/-2, ..., +/- 1000N

 Digital Force Gauges for determination of compression and tension forces.
2 operation modes: real time and peak force.
Capacities : +/-2 N, ...,  1000 N.
Accuracy : 0.2% FS.
sampling rate of 1000 times/sec or 30 times/sec.
Display update time 10 mal/sec.
Output signal : RS 232 C, ±1V DC, Mitutoyo Digimatic.
Manufacturers calibration report is included.

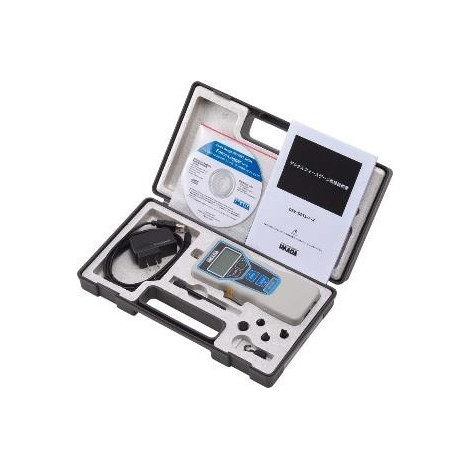

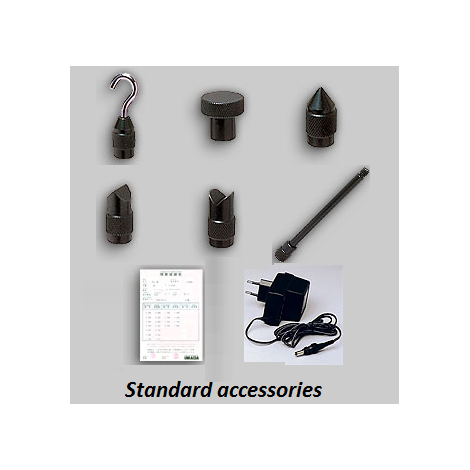

Full set of accessories included.



Applications

> <
Digital force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry. Force measuring unit with RS 232, Digimatic and analog output signal.
  • Force measuring device with high sampling rate of 1000 times/sec to measure the peak force during a test switchable to 30 times/sec for applications with slow-changing forces or for damping forces, beeing influenced by vibrations.
  • Programmable high/low set-points for go/no-go testing:
  • Display: underrun (-)  -  good (O)  -  exceeding (+).
  • Display can be reversed for inverted use; e. g. on vertical test stand.
  • Operates on rechargeable battery (NiMH) and/or AC adapter. Full set of accessories included.
DS2
