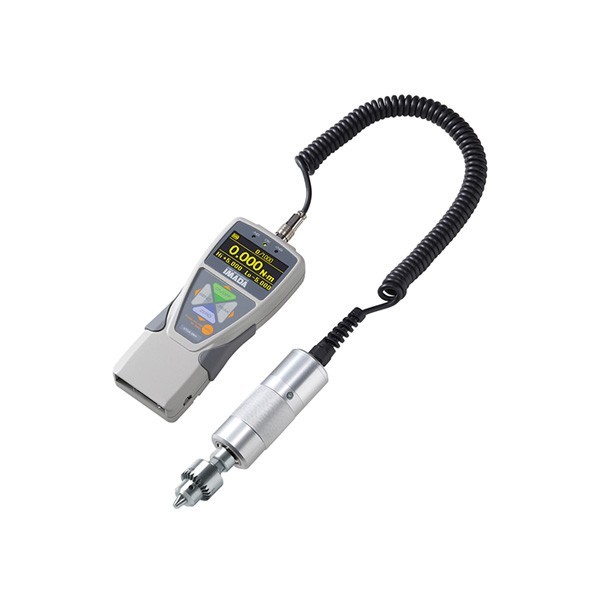

HTGS/HTGA : Handheld Type Digital Torque Gauge

Hand-held  torque meter with separate sensor for measuring the torque of screws, components, screw and plug connectors, drive shafts etc.
2 operation modes: real time and peak force.
Capacities : +/-0.5, 2, 5, 10 N.
Accuracy : 0.5% FS.
Sampling rate of 2000 times/sec.
Storage of 1000 values.
Output signal : RS 232 C, USB,  ±2V DC, Mitutoyo Digimatic.

Log in to your account to display prices
account_circleSend to a friend
HTGS/HTGA : Handheld Type Digital Torque Gauge

HTGS/HTGA : Handheld Type Digital Torque Gauge

Hand-held  torque meter with separate sensor for measuring the torque of screws, components, screw and plug connectors, drive shafts etc.
2 operation modes: real time and peak force.
Capacities : +/-0.5, 2, 5, 10 N.
Accuracy : 0.5% FS.
Sampling rate of 2000 times/sec.
Storage of 1000 values.
Output signal : RS 232 C, USB,  ±2V DC, Mitutoyo Digimatic.



Applications

> <
Hand-held torque meter with separate sensor for measuring the torque of screws, components, screw and plug connectors, drive shafts etc
High quality unit with interface (RS 232, USB, analog and Digimatic) and memory.
Device with extremly high sampling rate of 2000 times/sec for fast acquisition of peak values. Programmable high/low set-points for go/no-go testing: with color-coded LED display: underrun (-NG) - good (OK) - exceeding (+NG) and relais outputs.
      • Storage of 1000 values, which can be recalled: on the display, data transfer to a PC, for printing with report.
        • 6 different sensor attachments are available
        • The torque sensors of model HTGS-10N and HTGA-10N includes an additional supporting handle for better operation
        • Memory: Readings can be transfered from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec).
          2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording.
          Indication of two peak values per measurement.




HTGS/HTGA
