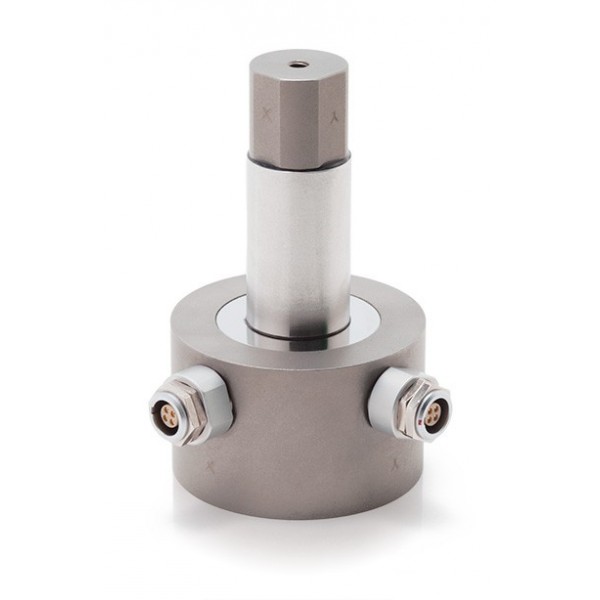

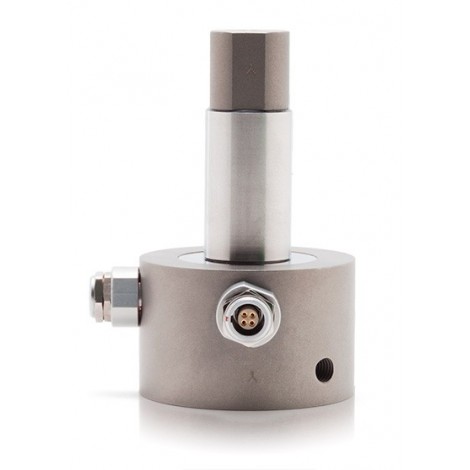

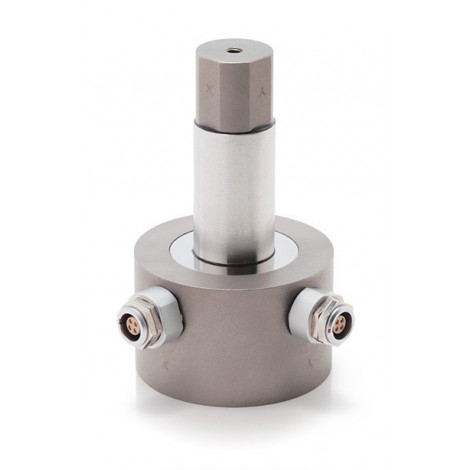

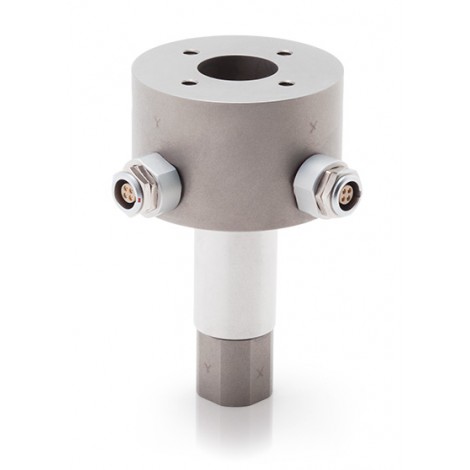

MBA400: Multi-Component Bi-Axial Load Arm.

Multi-Component Bi-Axial Load Arm. (Fx & Fy).
Capacities : +/- 50, 200 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.2%.
Material : Stainless steel.
Connectors outputs.

Log in to your account to display prices
account_circleSend to a friend
MBA400:  Multi-Component Bi-Axial Load Arm.

MBA400: Multi-Component Bi-Axial Load Arm.

Multi-Component Bi-Axial Load Arm. (Fx & Fy).
Capacities : +/- 50, 200 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.2%.
Material : Stainless steel.
Connectors outputs.



Applications

> <

The Mul ti-Component Bi-Axial Load Arm offers an excellent solution for measuring Fx and Fy loads. The MBA400 is made from robust 17-4 Stainless Steel, weighs only 16 ounces (454 grams), and offers a compact design.

The Multi-Component Bi-Axial Load Arm has high accuracy with a nonlinearity of ±0.1% of the rated output. The MBA400 can be modified or customized to meet your requirements .
