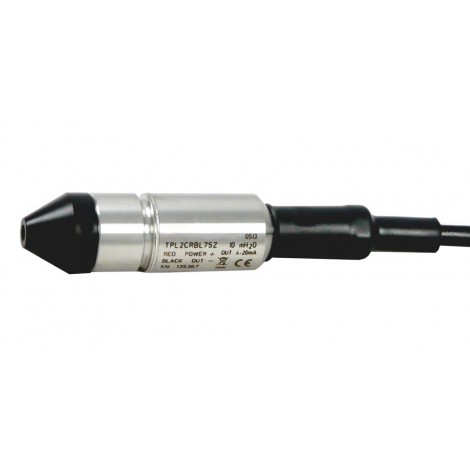

SM-TPL2C : Pressure transmitters to permanent immersion for level measures
Nominal RELATIVE pressures from : 300mbar (3mH2O) to 20bar (200mH2O).
Output : 4-20mA 2 wires.
Linearity and Hysteresis 0,1%.
Process coupling : 1/4" GAS Female.
POLYURETHANE cable outlet.
Power supply 12 to 24 Vdc.
Log in to your account to display prices
Login
Login
Applications
> <
Differential Pressure Application
TPL2C pressure transducers have been designed to be used as immersion level measuring instruments, employable in manifold fields dealing with controlling, regulating and monitoring activities.
The sensitive part in contact with pressure, is entirely made of AISI 316L stainless steel resistant to corrosion.
Installation of the sensors requires their total immersion at maximum depth, where measurements to determine levels non-dense substances are performed from.
Protection class IP68 (for permanent immersion).
SM-TPL2C
Nominal RELATIVE pressures from : 300mbar (3mH2O) to 20bar (200mH2O).
Output : 4-20mA 2 wires.
Linearity and Hysteresis 0,1%.
Process coupling : 1/4" GAS Female.
POLYURETHANE cable outlet.
Power supply 12 to 24 Vdc.
