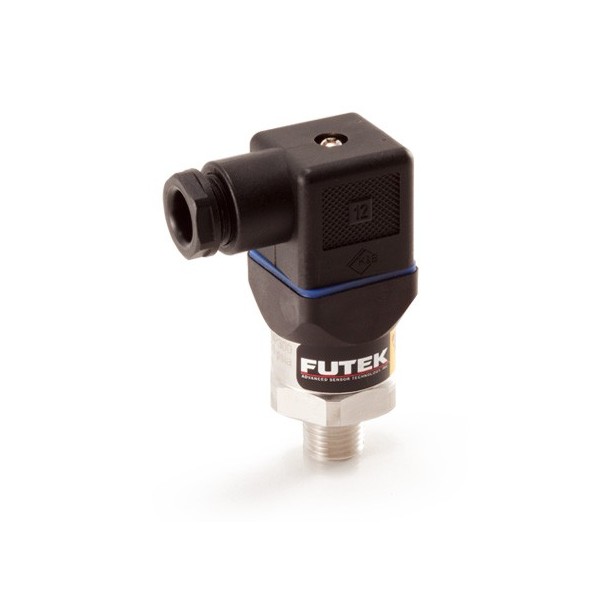

PMP300: Miniature Pressure Sensor - From 0 to 1, ..., 700 bars

  • Miniature Pressure Sensor (OEM)
  • Capacities : 0 to 1, 2, 3, 7, 20, 20, 35, 70, 140,  200, 345, 700 bars.
  • Rated output : 0-10 VDC.
  • Non Linearity : 0.5%.
  • Connector output.
Log in to your account to display prices
account_circleSend to a friend
PMP300: Miniature Pressure Sensor - From 0 to 1, ..., 700 bars

PMP300: Miniature Pressure Sensor - From 0 to 1, ..., 700 bars

  • Miniature Pressure Sensor (OEM)
  • Capacities : 0 to 1, 2, 3, 7, 20, 20, 35, 70, 140,  200, 345, 700 bars.
  • Rated output : 0-10 VDC.
  • Non Linearity : 0.5%.
  • Connector output.



Applications

> <

The PMP300 Pressure Sensor (OEM) is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications.

Performance and reliability is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing material that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long term reliability of the PMP300.
