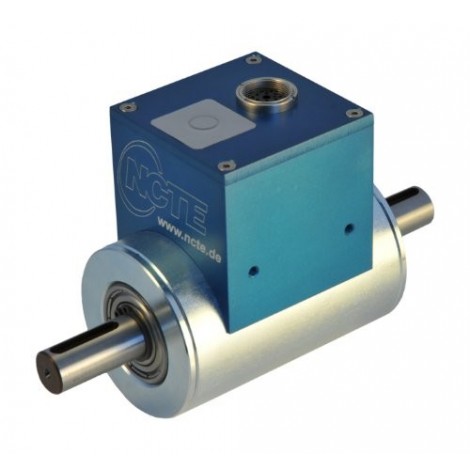

Serie 4000: Non-Contact Rotary Torque Sensor - From +/- 50 to 2000 Nm

Integrated encoder 360 PPR (Optionnal, contact us).
Measuring Range: +/- 50, 100, 250, 500, 1000 Nm.
Rated Output: 0...10V, 4...20 mA.
Non linearity: 0.1%.
Supply voltage: 11-28 VDC / 150 mA.
Rational speed: Up to 10,000 upm.
Supply voltage: 11-28 VDC / 150 mA.
Rational speed: Up to 10,000 upm.
Degree of protection: IP50.

Log in to your account to display prices
Capacité
account_circleSend to a friend
Serie 4000: Non-Contact Rotary Torque Sensor - From +/- 50 to 2000 Nm

Serie 4000: Non-Contact Rotary Torque Sensor - From +/- 50 to 2000 Nm

Integrated encoder 360 PPR (Optionnal, contact us).
Measuring Range: +/- 50, 100, 250, 500, 1000 Nm.
Rated Output: 0...10V, 4...20 mA.
Non linearity: 0.1%.
Supply voltage: 11-28 VDC / 150 mA.
Rational speed: Up to 10,000 upm.
Supply voltage: 11-28 VDC / 150 mA.
Rational speed: Up to 10,000 upm.
Degree of protection: IP50.



Applications

> <

With its integrated torque and rotational speed measurement, the high maximal rotational number and its high resolution, series 4000 represents the best product among the group of measurement shaft torque transducers.

Due to its highly accurate resolution this series is perfectly suitable as a sensor in a testing field or as a referential sensor for calibration configurations.

Serie 4000
