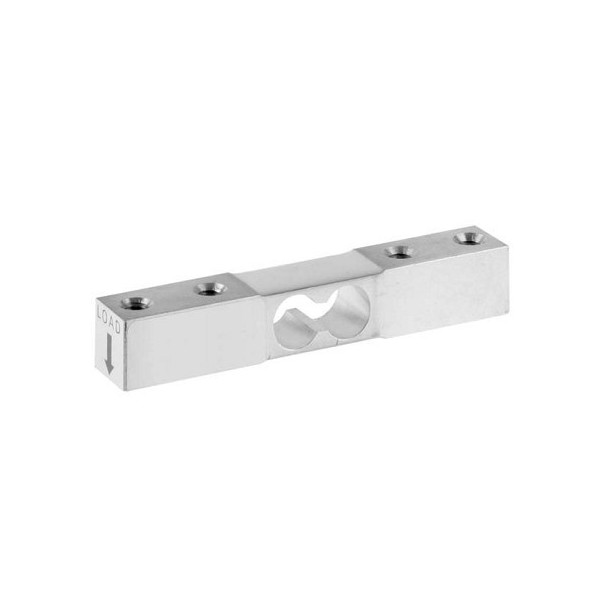

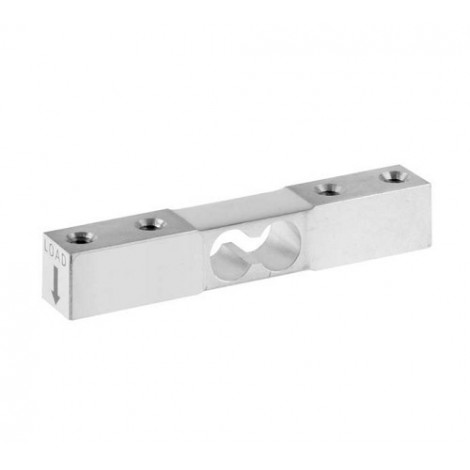

1002: Single-Point Load Cell - From 0 to 0.5,..., 20 Kg

Very Small Single-Point Load Cell for 200 x 200 mm platform.
Measuring Range: 0.5, 1, 2, 3, 5, 8, 15, 20 Kg.
Material: Aluminium.
Accuracy: 1000 points.
Environmental protection: IP66.
Cable output: 0.25m.


Log in to your account to display prices
account_circleSend to a friend
1002: Single-Point Load Cell - From 0 to 0.5,..., 20 Kg

1002: Single-Point Load Cell - From 0 to 0.5,..., 20 Kg

Very Small Single-Point Load Cell for 200 x 200 mm platform.
Measuring Range: 0.5, 1, 2, 3, 5, 8, 15, 20 Kg.
Material: Aluminium.
Accuracy: 1000 points.
Environmental protection: IP66.
Cable output: 0.25m.




Model 1002 is a very small, low capacity, aluminum single-point load cell, equally suitable for simple weighing scales or for industrial measurement and medical applications. The Model 1002 has the advantage of very small size. It is, therefore, both versatile and easy to use in a wide variety of industrial measurement applications.
Optional 1000-ohm strain gages are particularly suitable for connection to battery-powered equipment.
Typical applications include packing machines, filling machines, weaving machines, industrial process control, and low-force medical applications, as well as smallplatform weighing.
