1130: Stainless Steel Single-Point Load Cell - From 0 to 7,..., 100 Kg

Low Profile stainless steel single-point load cell for 400 x 400 mm platform.
Measuring Range: From 0 to 7, 10, 15, 20, 30, 35, 50, 75, 100 Kg.
Material: Aluminium.
Accuracy: 3000 points.
Environmental protection: IP66.
Approval NTEP & OIML R60.
Cable output: 1.5m.

Log in to your account to display prices
account_circleSend to a friend
1130: Stainless Steel Single-Point Load Cell  - From 0 to 7,..., 100 Kg

1130: Stainless Steel Single-Point Load Cell - From 0 to 7,..., 100 Kg

Low Profile stainless steel single-point load cell for 400 x 400 mm platform.
Measuring Range: From 0 to 7, 10, 15, 20, 30, 35, 50, 75, 100 Kg.
Material: Aluminium.
Accuracy: 3000 points.
Environmental protection: IP66.
Approval NTEP & OIML R60.
Cable output: 1.5m.

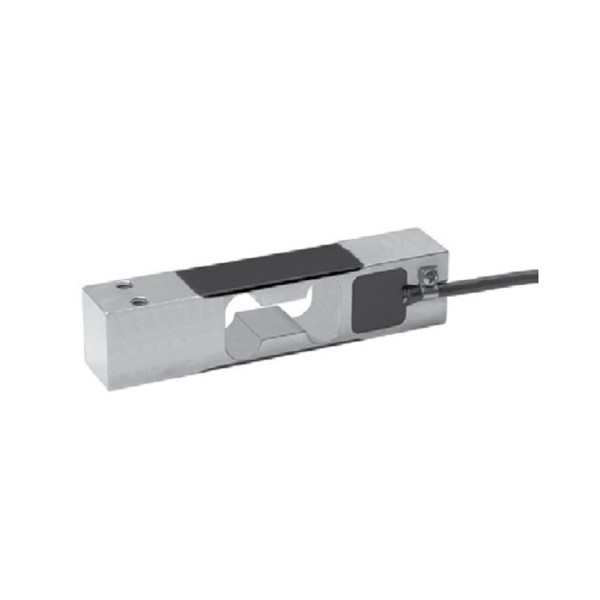

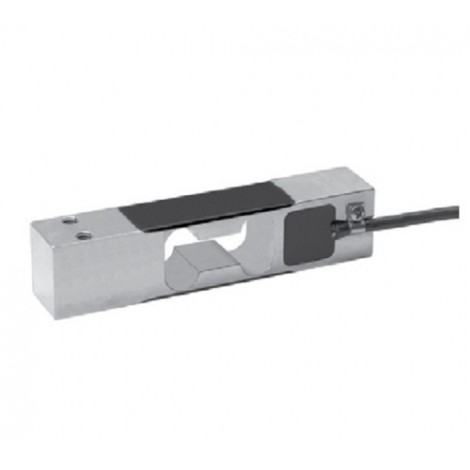

Model 1130 is a low profile stainless steel single-point load cell ideally designed for direct mounting in bench and platform scales, packaging and process weighing equipment, and is built to perform in harsh environments. The small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for low profile bench and counting scales.
A special humidity resistant protective coating assures long-term stability over the entire compensated temperature range. Constructed in stainless steel this high accuracy load cell is approved to stringent approval standards, e.g., OIML and NTEP.
The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is acheived by feeding this voltage into the appropriate electronics.

1130
