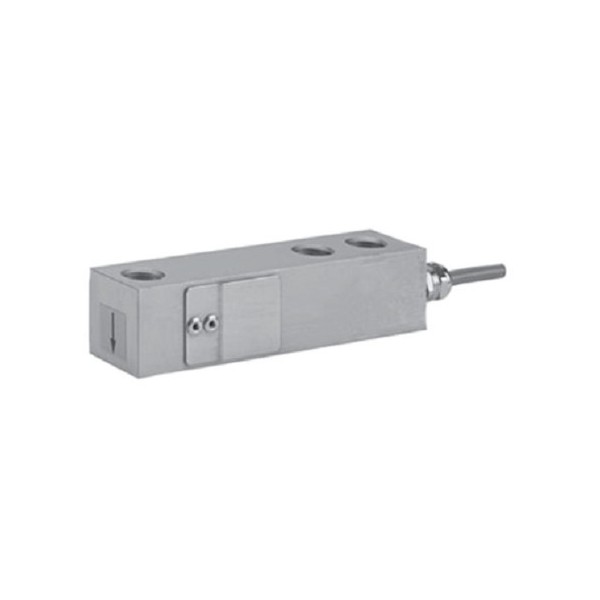

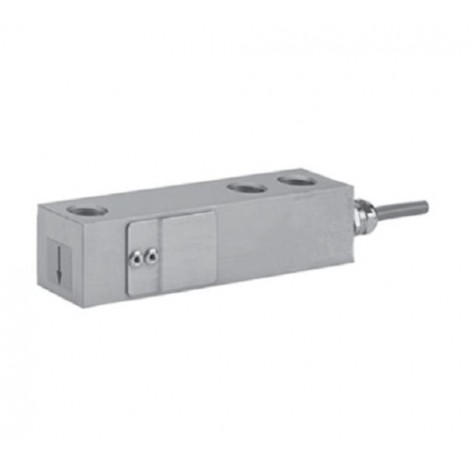

3410: Shear Beam Load Cell - From 0 to 250, ..., 2000 Kg

Low profile shear beam load cell.
Measuring Range: From 0 to 250, 500, 1000, 2000 Kg.
Material: Steel and stainless steel construction.
Accuracy: 3000 points.
Approval NTEP & OIML R60.
Environmental protection: IP67.
Cable output: 3m.

Log in to your account to display prices
account_circleSend to a friend
3410: Shear Beam Load Cell - From 0 to 250, ..., 2000 Kg

3410: Shear Beam Load Cell - From 0 to 250, ..., 2000 Kg

Low profile shear beam load cell.
Measuring Range: From 0 to 250, 500, 1000, 2000 Kg.
Material: Steel and stainless steel construction.
Accuracy: 3000 points.
Approval NTEP & OIML R60.
Environmental protection: IP67.
Cable output: 3m.



Model 3410 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications. It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity.
Approved to OIML, NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval. Nickel plating and full environmental sealing assures long-term reliability.
A stainless steel option is available for the lb versions for use in harsh or corrosive environments.

3410
