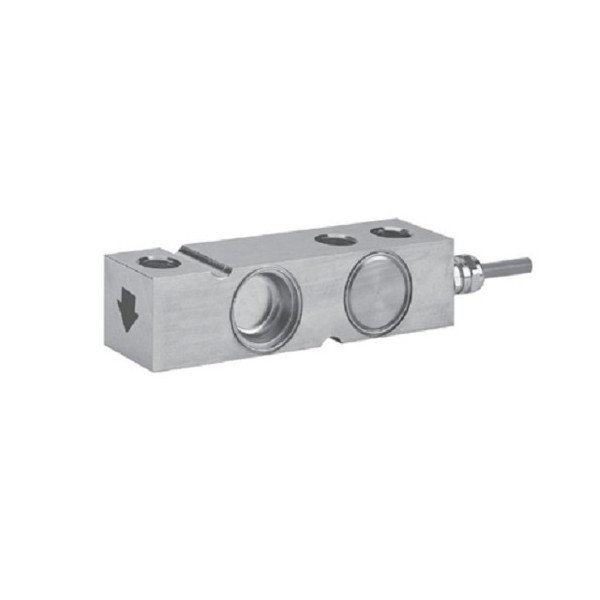

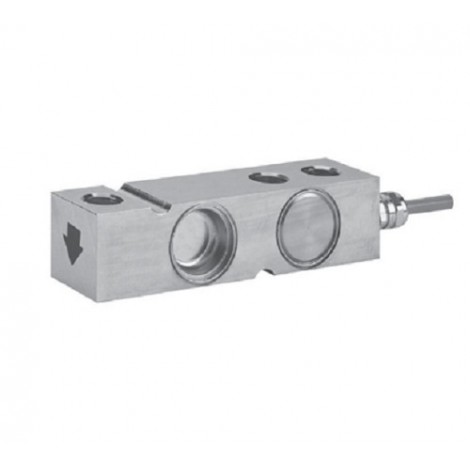

3510: Shear Beam Load Cell (Stainless Steel) - From 0 to 300, ..., 5000 Kg



High capacity shear beam load cell.
Measuring Range: From 0 to 300, 500, 750, 1000, 2000, 3000, 5000 Kg.
Material: Stainless steel construction.
Accuracy: 3000 & 6000 points.
Approval NTEP & OIML R60.
Environmental protection: IP68.

3510

Add to quotation

More info

Model 3510 provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical low profile range suitable for platform scale manufacture. Its low profile and all welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos. The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell. Hermetically sealed against moisture, the construction of the Model 3510 in combination with a polyurethane dual shielded cable, enables continuous operation in harsh environments while maintaining a high operating specification.
