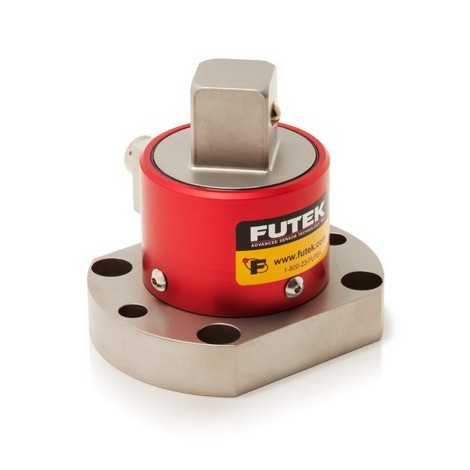

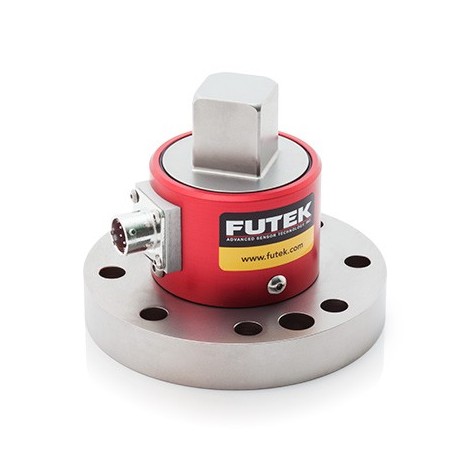

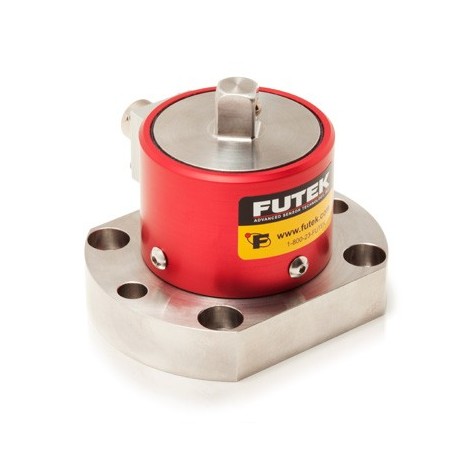

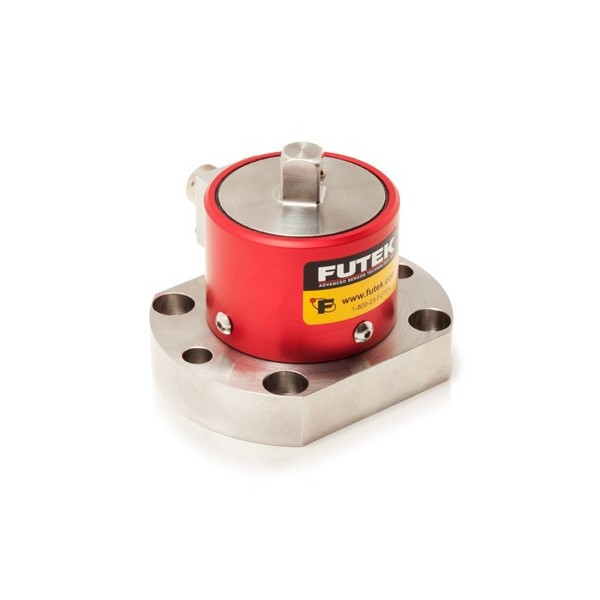

TDF600: Reaction Torque Sensor - 135 ... 2700 Nm

Reaction Torque with Flange to Square with strain gauge technology.
Capacities TDF600: +/- 135, 270, 680 Nm.
Capacities TDF650 :  +/-  1350 Nm.
Capacities TDF675 : +/- 2 700 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Connector output.

Log in to your account to display prices
Capacité
account_circleSend to a friend
TDF600: Reaction Torque Sensor - 135 ... 2700 Nm

TDF600: Reaction Torque Sensor - 135 ... 2700 Nm

Reaction Torque with Flange to Square with strain gauge technology.
Capacities TDF600: +/- 135, 270, 680 Nm.
Capacities TDF650 :  +/-  1350 Nm.
Capacities TDF675 : +/- 2 700 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Connector output.



Applications

> <

FUTEK’s Reaction Torque Sensor - Flange/Square Drive offers a unique solution for auditing and calibrating mechanical torque wrenches, also used in production and automated assembly applications. The TDF600 Reaction Torque Sensor - Flange/Square Drive is available in 17-4 Stainless Steel with a Aluminum cover.

The standard TDF600 Reaction Torque Sensor - Flange/Square Drive can be modified or customized to meet your requirements. The TDF600 Reaction Torque Sensor - Flange/Square Drive Series is manufactured in USA and uses metal foil strain gauge technology.

TDF600
