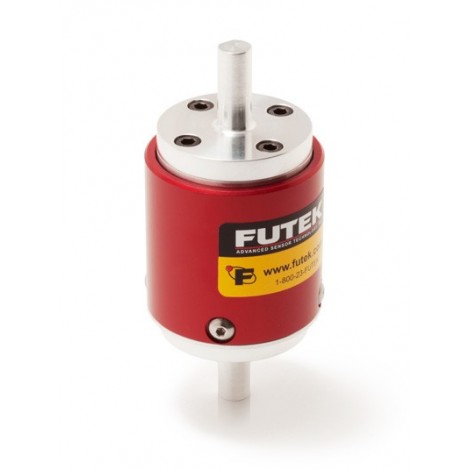

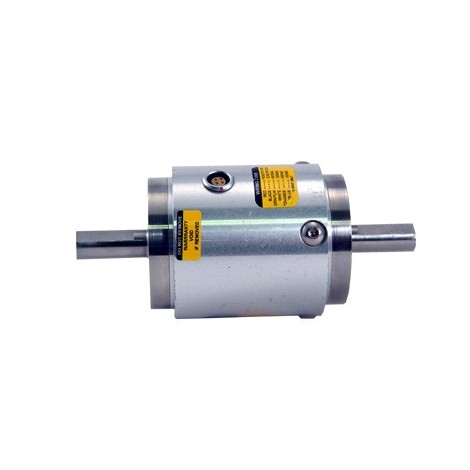

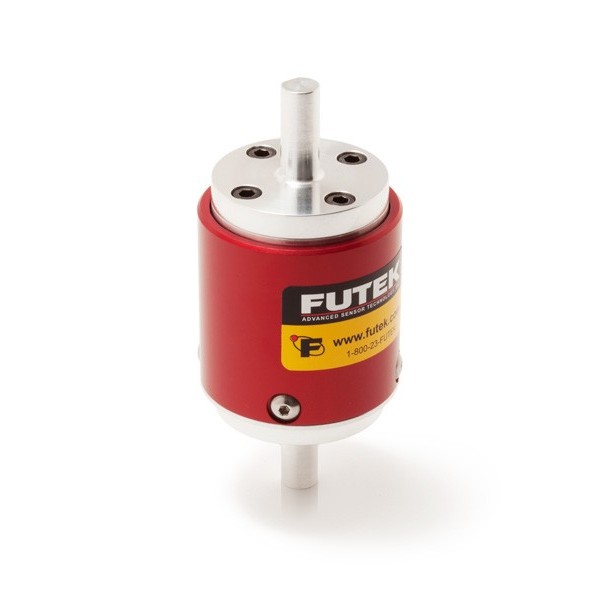

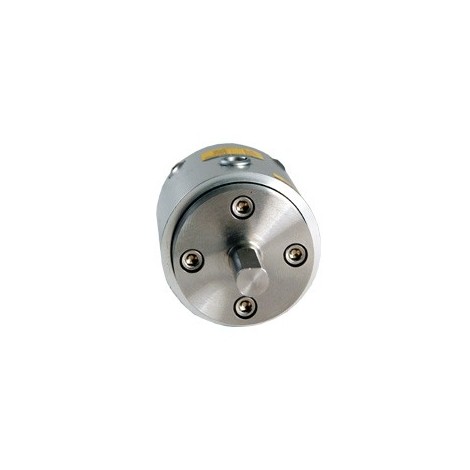

TSS400: Reaction Torque Sensor - Shafts - +/-0.04 to 60 Nm

Reaction  miniature Torque Sensor with Shafts.
Capacities : 0.04, 0.08, 0.15, 0.35, 1.2, 3, 7, 12, 23, 60 Nm.
Rated output : 1-2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Cable output.

Log in to your account to display prices
Capacité
account_circleSend to a friend
TSS400: Reaction Torque Sensor - Shafts - +/-0.04 to 60 Nm

TSS400: Reaction Torque Sensor - Shafts - +/-0.04 to 60 Nm

Reaction  miniature Torque Sensor with Shafts.
Capacities : 0.04, 0.08, 0.15, 0.35, 1.2, 3, 7, 12, 23, 60 Nm.
Rated output : 1-2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Cable output.



Applications

> <

FUTEK’s Reaction Torque Sensor - Shafts offers a unique solution for low capacity torque auditing applications. The TSS400 Reaction Torque Sensor - Shafts is available in Aluminum construction with a built-in Overload Protection up to 400 in-oz.

The standard TSS400 Reaction Torque Sensor - Shafts can be modified or customized to meet your requirements. The TSS400 Reaction Torque Sensor - Shafts Series is manufactured in USA and uses metal foil strain gauge technology.

TSS400
