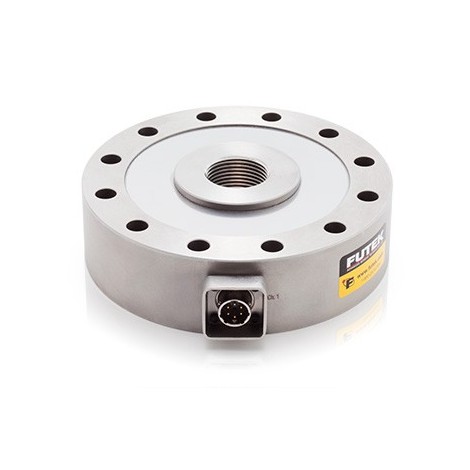

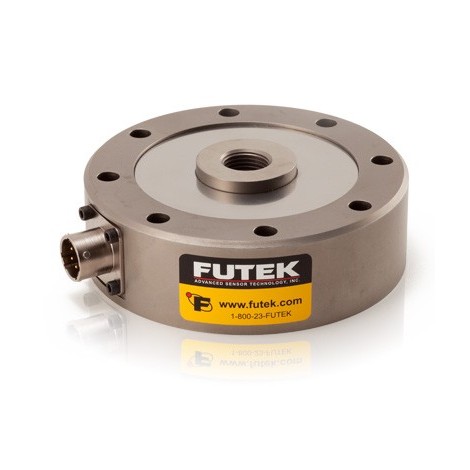

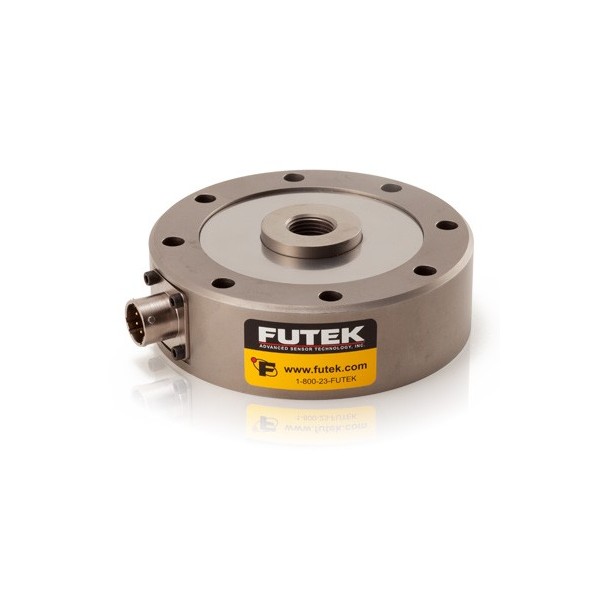

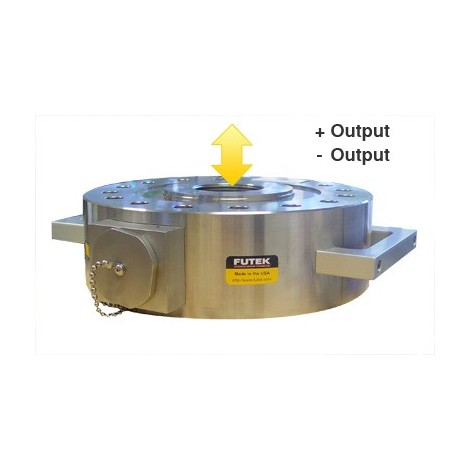

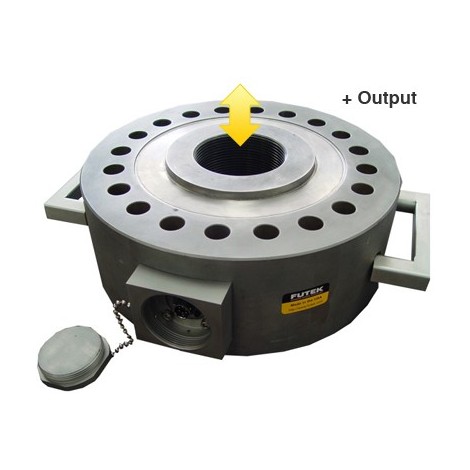

LCF450 -- LCF700: Tension Compression Pancake Load Cell +/- 250 Lb .... +/- 400 000 Lb

  • Tension and Compression Pancake Load Cell.
  • Capacities :
  • - LCF450 : +/- 250, 300, 500, 1000, 2000, 3000, 5000, 10 000 Lb.
  • - LCF500 : +/- 20 000, 30 000, 50 000 Lb.
  • - LCF550 : +/- 100 000 Lb.
  • - LCF650 : +/- 250 000 Lb.
  • - LCF700 : +/- 400 000 Lb.
  • Rated output : ± 2 mV/V, ± 4 mV/V
  • Non Linearity : 0.1%, 0.2%.
  • Material : Aluminium and Stainless steel.
  • Connnector output.
Log in to your account to display prices
Capacité
account_circleSend to a friend
LCF450 -- LCF700: Tension Compression Pancake Load Cell +/- 250 Lb .... +/- 400 000 Lb

LCF450 -- LCF700: Tension Compression Pancake Load Cell +/- 250 Lb .... +/- 400 000 Lb

  • Tension and Compression Pancake Load Cell.
  • Capacities :
  • - LCF450 : +/- 250, 300, 500, 1000, 2000, 3000, 5000, 10 000 Lb.
  • - LCF500 : +/- 20 000, 30 000, 50 000 Lb.
  • - LCF550 : +/- 100 000 Lb.
  • - LCF650 : +/- 250 000 Lb.
  • - LCF700 : +/- 400 000 Lb.
  • Rated output : ± 2 mV/V, ± 4 mV/V
  • Non Linearity : 0.1%, 0.2%.
  • Material : Aluminium and Stainless steel.
  • Connnector output.



Applications

> <

LCF450-- LCF700 are Pancake Load Cell designed for tension and compression applications, available in Anodized Aluminum for lower capacities and Stainless Steel for higher capacities with options such as Fatigue Rating, and Amplified Version.
The Pancake Load Cell offers high accuracy and low  Deflection. The standard LCF450 -- LCF700 strain gauge Load Cell can be modified to meet your requirements.

LCF450 / LCF700
