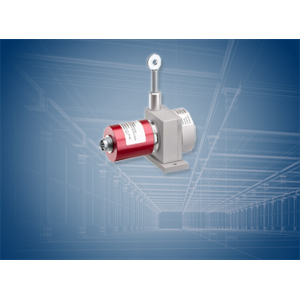

Cable displacement sensor

SENSEL Measurement commercializes and designs a large range of potentiometric displacement sensors with cable. The cable displacement sensors, generally used for measuring long range displacement, are fitted with a potentiometer linked to a cable reel. Our manufacturing process will let you to create your own custom made sensor adapted to your application. You will be able to choice the length of the cable, the protection factor, the type of the outgoing signal, the accuracy, etc….
Cable displacement sensor

Active filters

SMCD50: Cable Displacement Sensor - From 0 to 50, ..., 1200 mm.

Measuring range: 0 ... 50, 100, 250, 500, 750, 1000, 1200 mm.
Material: Aluminium & Stainless steel.
Potentiometric output signal: 1kΩ (other values on demand).
Analogic output (Option): 0...10V, 4...20mA.
Resolution: Quasi infinite.
Standard Linearity: 0.25% (Up to 0.1% in option).

See more

SMCD50-INC : Draw wire Displacement Sensor with incremental output - From 0 to 50, ..., 1250 mm.

Measuring range: 0 ... 50, 100, 250, 500, 750, 1000, 1250 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

See more

SMCD60: Cable Displacement Sensor - From 0 to 1500mm

Measuring range: 0 ... 1500 mm.
Potentiometric output signal: 1kΩ (other values on demand).
Analogic output (Option): 0...10V, 4...20mA.
Resolution: Quasi infinite.
Standard Linearity: +/- 0.15% (Up to 0.1% in option).
Degree of protection: IP54 (IP67 in option).

See more

SMCD60-INC : Draw wire Displacement Sensor with incremental output - From 0 to 1500 mm.

Measuring range: 0 ... 1500 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

See more

SMCD80: Cable Displacement Sensor - From 0 to 2000 mm

Measuring range: 0 ... 2000 mm.
Potentiometric output signal: 1kΩ (other values on demand).
Analogic output (Option): 0...10V, 4...20mA.
Resolution: Quasi infinite.
Standard Linearity: +/- 0.15% (Up to 0.1% in option).
Degree of protection: IP54 (IP67 in option).

See more

SMCD80-INC : Draw wire Displacement Sensor with incremental output - From 0 to 2500 mm.

Measuring range: 0 ... 2500 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

See more

SMCD115: Cable Displacement Sensor - From 0 to 3000

Measuring range: 0 ... 3000 mm.
Potentiometric output signal: 1kΩ (other values on demand).
Analogic output (Option): 0...10V, 4...20mA.
Resolution: Quasi infinite.
Standard Linearity: +/- 0.15% (Up to 0.1% in option).
Degree of protection: IP54 (IP67 in option).

See more

SMCD120-INC : Draw wire Displacement Sensor with incremental output - From 0 to 3500 mm.

Measuring range: 0 ... 3500 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

See more

SMCD150: Cable Displacement Sensor - From 0 to 6000 mm.

Measuring range: 0 ... 6000 mm.
Potentiometric output signal: 1kΩ (other values on demand).
Analogic output (Option): 0...10V, 4...20mA.
Resolution: Quasi infinite.
Standard Linearity: +/- 0.15% (Up to 0.1% in option).
Degree of protection: IP54 (IP67 in option).

See more

SMCD150-INC : Draw wire Displacement Sensor with incremental output - From 0 to 6000 mm.

Measuring range: 0 ... 6000 mm.
Material: Aluminium & Stainless steel.

Output stages:
5V RS422 driver
5 – 24V push-pull driver
5 – 30V push-pull driver
11 – 30V push-pull driver

Resolution: 1, 5, 10, 20, 25 Pulse/mm
Standard Linearity: 0.05% (Up to 0.01% in option).

See more

SMCDS1210 : Capteur de déplacement à câble de 0 à 10000 mm.

Measuring range: 0 ... 10000 mm.

  • Potentiometric output signal: 1kΩ (other values on demand).
  • Analogic output (Option): 0...10V, 4...20mA.
  • Resolution: Quasi infinite.
    Standard Linearity: +/- 0.15% (Up to 0.1% in option).
    Degree of protection: IP54 (IP67 in option).
See more
