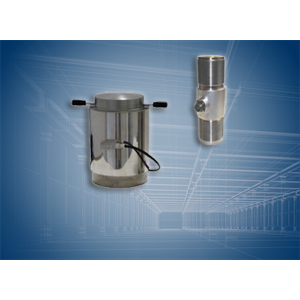

High capacity Load Cell





Sensel Measurement sales and designs a large range of strain gage high capacties load cells. We offer a very large range of measurement from ±100 kg to 500 T with a high accuracy (up to 0.02% FS).


Bending beam weighing cell

High capacity Compression Load Button Load Cell.
Capacities : 0 to 0.1 - 0.25 - 0.5 - 1 - 2.5 - 5 - 7.5 - 10 -  20 - 30 - 50 - 75- 100 - 150 - 200 Tonnes..
Rated output : 2 mV/V.
Accuracy OIML R60  : C1, C2, C3..
Material : Stainless steel.
Protection IP68
WIRELESS OPTION AVALAIBLE

See more
  • -
  • High capacity Compression Load Button Load Cell with amplified output.
  • Capacities : 0 to 0.1 - 0.25 - 0.5 - 1 - 2.5 - 5 - 7.5 - 10 -  20 - 30 - 50 - 75- 100 - 150 - 200 Tonnes.
  • Rated output :  4...20 mA, 0...5V, 0...10V
  • Accuracy : 0.03%
  • Material : Stainless steel.
    Protection IP68.
See more

Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100, 200, 300, 500 Tonnes.
Rated Output: ± 2 mV/V.
Non linearity: 0.1%.
Degree of protection:
Degree of protection: IP67.
Material:
Material: Stainless Steel.
Cable output: 5 m.
Option WIRELESS avalaible

See more

Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100, 200, 300, 500 Tonnes.
Rated Output: ± 5V,  ± 10V, 4...20 mA.
Non linearity: 0.1%.
Degree of protection:
Degree of protection: IP67.
Material:
Material: Stainless Steel.
Cable output: 5 m.

See more
  • High capacity Compression Donut Load Cell.
  • Capacities : 0 to  1 - 2.5 - 5 - 10 -  25 - 40 - 50 - 75- 100 Tonnes.
  • Rated output : 2 mV/V, 0...5V, 0...10V, 4...20mA.
  • Accuracy   < 0.2% FS.
  • Material : Stainless steel.
    Protection IP67.
See more
  • -
  • High capacity Tension Compression Load Button Load Cell.
  • Capacities : +/-  100, 200, 250 Tonnes.
  • Rated output : 2 mV/V
  • Accuracy : 0.1%
  • Material : Stainless steel.
    Protection IP65.
See more
  • -
  • High capacity Tension Load Button Load Cell.
  • Capacities : 5, 7.5, 10, 15, 20 Tonnes.
  • Rated output : 2 mV/V
  • Accuracy : 2000, 3000 points
  • Material : Stainless steel.
    Protection IP68
See more

High capacity Tension  Load Cell.
Capacities :  5, 7.5, 10, 15, 20 Tonnes.
Rated output : 4...20 mA, 0...5V, 0...10V
Accuracy : 0.03%
Material : Stainless steel.
Protection IP65.

See more

High capacity Tension Load Button Load Cell.
Capacities :  20, 30, 50, 75, 100 Tonnes.
Rated output : 2 mV/V
Accuracy : 0.1% FS
Material : Stainless steel.
Protection IP65
Wireless Option avalaible.

See more

High capacity Tension Compression Load Button Load Cell.
Capacities : +/- 0.35 - 0.5 - 1 - 2.5 - 5 - 7.5 - 10 - 20 Tonnes.
Rated output : 2 mV/V.
Accuracy : 0.03%
Material : Stainless steel.
Protection IP67.

See more

High capacity Tension Compression Load Button Load Cell.
Capacities : +/-  0.35 - 0.5 - 1 - 2.5 - 5 - 7.5 - 10 - 20 Tonnes.
Rated output : +/-5V, +/-10V, 4...20 mA.
Accuracy : 0.03%
Material : Stainless steel.
Protection IP67.

See more

High capacity Tension Compression Load Button Load Cell.
Capacities : +/- 3 - 5 - 10 - 20 - 30 - 50 - 60 Tonnes.
Rated output : 2 mV/V.
Accuracy : 0.03%
Material : Stainless steel.
Protection IP67.

See more

High capacity Compression column Load Cell.
Capacities : 30 - 60 - 100 - 200 - 300 - 500 Tonnes.
Rated output : 2 mV/V.
Accuracy OIML R60  : C1, C2.
Material : Stainless steel.
Protection IP68.

See more
