Tension & Compression Load cell

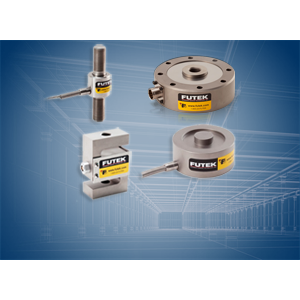

Discover our large range of strain gage force sensors In traction and compression, allowing to measure load from ± 10kg to ± 500 tons with a high accuracy. 3 kinds of tension compression Load cell : - “Pancake”' type. - “S” type. - "In line" Load cell.
Tension Compression Load Cell


Tension & compression S Beam Load Cell.
Capacities : +/- 50, 100, 200, 500, 1000, 2000, 5000, 10000 Lb.
Rated output : ± 2 mV/V.
Non Linearity <0.1%.
Material: Aluminium, stainless steel
Connector or cable output.

See more

Tension & compression S Beam Load Cell.
Capacities : +/- 25, 50, 100, 300 Lb.
Rated output : ± 2 mV/V.
Non Linearity <0.05%.
Overload Protection.
Material: Anodized Aluminum
Connector or cable output.

See more
  • High capacity Compression Load Button Load Cell.
  • Capacities : 0 to 15000, 20000, 30000, 50000 Lb.
  • Rated output : 2 mV/V.
  • Non Linearity : 0.5%.
  • Material : Stainless steel.
    Teflon Cable output.
See more
  • Tension and Compression Pancake Load Cell.
  • Capacities :
  • - LCF450 : +/- 250, 300, 500, 1000, 2000, 3000, 5000, 10 000 Lb.
  • - LCF500 : +/- 20 000, 30 000, 50 000 Lb.
  • - LCF550 : +/- 100 000 Lb.
  • Rated output : ± 2 mV/V, ± 4 mV/V
  • Non Linearity : 0.1%, 0.2%.
  • Material : Aluminium and Stainless steel.
  • Connnector output.
See more



  • Compression Donut Load Cell.
  • Capacities : 0 to 250, 500, 1000, 2000, 3000, 5000, 7500, 10 000 Lb.
    Variable inside diameter to specify :  1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8''.
  • Rated output : 2 mV/V.
  • Non Linearity : 0.5%.
  • Material : Stainless steel.
    Teflon Cable output.
See more

Capacities : 0 to 2, 3, 5, 7.5, 10, 15, 20, 30, 50 KLb.
Variable inside diameter to specify : 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8', 3/4, 7/8, 1 1/4 ''.
Rated output : 2 mV/V.
Overload : 150% of capacity.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.

See more

Tension and Compression Threaded Rod Load Cell.
Capacities : +/- 20000, 50000 Lb
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : 17-4 PH stainless steel.
Cable output.

See more

Tension & compression S Beam Load Cell.
Capacities : +/- 10, ..., 1000 daN.
Rated output : ± 2 mV/V.
Non Linearity : 0.1, 0.03, 0.02 %.
Protection IP65.
Material: Anodized aluminium alloy.
Available options : integrated amplifier output  10V or 4...20 mA, ATEX, high service temperature (150 °C).

See more

Low profil compression load cell design for press control, Silos, tanks, hoppers, Reactors weighing.
Measuring Range:  0 to 0.3 - 0.5 - 0.75 - 1 - 1.5 - 2 - 3 – 5 – 7.5 – 10 – 15 - 20 Tonnes.
Rated Output: ± 1.5 mV/V.
Non linearity:  0.25%, 0.1%.
Degree of protection: IP67.
Material: Stainless Steel.
Available options : integrated amplifier output , ATEX, high service temperature (150 °C).

See more

Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100, 200, 300, 500 Tonnes.
Rated Output: ± 2 mV/V.
Non linearity: 0.1%.
Degree of protection:
Degree of protection: IP67.
Material:
Material: Stainless Steel.
Cable output: 5 m.
Option WIRELESS avalaible

See more

Tension & compression In line Load Cell.
Capacities :  +/- 10 KN to +/- 30MN.
Rated output : ± 2 mV/V.
Non Linearity < 0.1%.
Protection IP66.
Material: Stainless steel,
 Nickel plated steel.
Available options : integrated amplifier output  10V or 4...20 mA, ATEX, high service temperature (180 °C).

See more

Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100, 200, 300, 500 Tonnes.
Rated Output: ± 5V,  ± 10V, 4...20 mA.
Non linearity: 0.1%.
Degree of protection:
Degree of protection: IP67.
Material:
Material: Stainless Steel.
Cable output: 5 m.

See more

Force transducer suitable for material testing machines and  test benches in general.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100 Tonnes.
High mechanical resistance.
Completely made of stainless steel.
Completely LASER welded.
Non linearity: 0.1%.
Degree of protection IP40.
Long term stability.
Serial output RS232C on request.

See more


Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range:
 +/- 3, 5, 7.5,10, 50,100,150, 200, 300,... , 3000 kN.
Rated Output: ± 2 mV/V.
Non linearity: 0.1%, 0.2%.
Degree of protection:
IP66.
Material:
Aluminium, Stainless Steel.
Available options : integrated amplifier output , ATEX, high service temperature (150 °C).

See more

Fatigue Rated Low Profile Universal Pancake Load Cell
LCF451 : +/- 250, 500, 1000, 2500, 5000 Lb.
LCF501 : +/- 12 500, 25 000 Lb.
LCF551 : +/- 50 000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.1%, 0.2%.
Material : Aluminium and Stainless steel.
Connector output.

See more

Tension and Compression Pancake Load Cell
Capacities : +/- 250, 500, 1000, 2500, 5000 Lb
Rated output : ± 2 mV/V.
Non Linearity : < 0.1%.
Material : Stainless steel.
Connector output.

See more

 Tension/Compression Load Cell with Male Center Stud.
Capacities : +/- 100, 200, 500, 1000, 2000, 3000, 5000 Lb.
Rated output : ± 1.5 mV/V.
Non Linearity : 0.25 %.
Material : Aluminium, stainless steel.

See more

Capacities : +/- 1000, 3000, 10000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.5 %.
Material : Aluminium, stainless steel

See more
