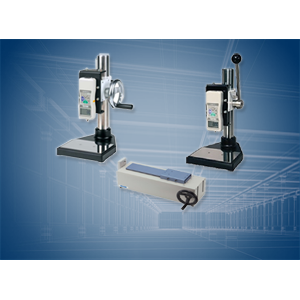

Manual Test Stand

Sensel Measurement commercializes and designs a large range of vertical or horizontal manual test stand with hand lever or hand wheel for measurement in compression and tension up to 3000N.
Manual Test Stand

Vertical manual test stand for compression and tension forces.
Test stand with adjusting knob, max. stroke 80 mm.
One turn of the knob = 18 mm.
Fine movement for exact positioning.
Capacity: max. 50 N.
Horizontal operating with the test stand is possible by using handle or tripod.

See more

Vertical manual test stand for compression and tension forces.
Test stand with adjusting knob, max. stroke 100 mm.
One turn of the knob = 1 mm.
Fine movement for exact positioning.
Capacity: max. 50 N.

See more

Vertical manual test stand with  with hand lever for measuring compression and tension forces.
Test stand with adjusting knob, max. stroke 265 mm.
Travel of a mounted force gauge = 60mm/170 degree turn of its lever.
Fine movement for exact positioning.
Capacity: max. +/-1000 N.
Available with distance measuring system.

See more

Vertical manual test stand with  with hand wheel for measuring compression and tension forces.
Test stand with adjusting knob, max. stroke 265 mm.
Travel of a mounted force gauge = 3mm/a complete turn of its handle
Fine movement for exact positioning.
Capacity: max. +/-1000 N.
Available with distance measuring system.

See more

Vertical manual test stand with hand wheel for measuring compression and tension forces
Test stand with adjusting knob, max. stroke 280 mm.
One turn of the hand wheel = 2 mm.
Fine movement for exact positioning.
Capacity: max. 500 N.
Available with distance measuring system and extended stroke.

See more

Vertical manual test stand with hand wheel for measuring compression and tension forces
Test stand with adjusting knob, max. stroke 370 mm.
One turn of the hand wheel = 1.2 mm.
Fine movement for exact positioning.
Capacity: max. 1000 N.
Available with distance measuring system.

See more

Vertical manual test stand with hand wheel for measuring compression and tension forces
Test stand with adjusting knob, max. stroke 370 mm.
One turn of the hand wheel = 0.6mm.
Fine movement for exact positioning.
Capacity: max. 3000 N.
Available with distance measuring system.

See more

 Horizontal  manual test stand with  with hand wheel for measuring compression and tension forces.
Capacity: max. +/-1000 N.
Test stand with adjusting knob, max. stroke 250mm.
Travel of a mounted force gauge = 1.2 /a complete turn of its handle.
Fine movement for exact positioning.
Available with distance measuring system.

See more

Horizontal  manual test stand with  with hand wheel for measuring compression and tension forces.
Capacity: max. +/- 3000 N.
Test stand with adjusting knob, max. stroke 320 mm.
Travel of a mounted force gauge = 0.6 mm/a complete turn of its handle.
Fine movement for exact positioning.
Available with distance measuring system.

See more
