Inclinometers, Tiltmeters, Tiltsensors




Our range of inclinometers includes the In-Place Inclinometer, for near vertical boreholes. Allowing rapid datalogging and real-time monitoring, these instruments are particularly suitable for tunnel and railway line works. We also offer systems using the latest in Bluetooth and MEMS technology, suitable for both manual and remote monitoring.
Inclinometers, Tiltmeters, Tiltsensors

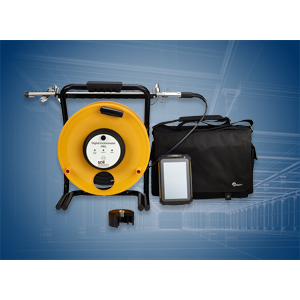

Probe Calibrated ranges ±30° (±250mm) [±12”]
Resolution 0.005mm [0.0002”]
Sensor accuracy ±0.02% full scale (±0.1mm)
Operating temperature -20 to +70°C
Repeatability ±0.005% full scale
System accuracy (over 25m) ±2mm
Cable Type Kevlar® re-enforced Polyurethane coated 4 core cable
Bluetooth connection between cable reel and Field Tablet
Ultra-rugged Field Tablet allows easy transfer of data

See more

Calibrated Range ±10°
Resolution 0.001% full scale
Sensor accuracy ±0.05% full scale
Operating temperature -10 to +50°C
Repeatability ±0.01% full scale
Minimum casing internal diameter 56mm
Maximum casing internal diameter 72mm
Weight (without cable) 540g
Dimensions 192mm x Ø32mm
Input voltage 10-16VDC
Signal output at full range ±2.5VDC differential
Current consumption 23mA (biaxial)
Ingress protection IP68 to 200mH2O
Housing material Stainless Steel

See more

Calibrated Range ±3° | ±5° | ±10° | ±15°
Resolution 0.008% full scale
Sensor accuracy ±0.05% full scale
Operating temperature -20 to +80°C
Repeatability ±0.01% full scale
Minimum casing internal diameter 56mm
Maximum casing internal diameter 72mm
Weight (without cable) 540g
Dimensions 192mm x Ø32mm
Input voltage 10-16VDC
Signal output at full range ±2.5VDC differential
Current consumption 9mA (uniaxial) / 17mA (biaxial)
Ingress protection IP68 to 200mH2
Housing material Stainless Steel

See more

Calibrated Range ±30° from vertical over a temperature of –10°C to +40°C
Resolution 9 arc seconds / 0.04 mm/m
Operating Temperature -20°C to +50°C
Repeatability ±82 arc seconds / 0.4mm/m
Casing Diameter Fits 70mm (2.75”) OD, Inclinometer casing or 38mm (1.5” ) ID, Schedule 40 PVC tube
Input Voltage From 10Vdc to 30Vdc
Distance Between Sensors 0.609m
Minimum Number of Sensors 2
Maximum Number of Sensors 200
Ingress Protection IP68 to 2MPa

See more

Material ABS (Acrylonitrile Butadiene Styrene)
Groove spiral < 0.3°/3m
Collapse rating 1960kPa 1770kPa
Bend rating 3.07kN 2.65kN
Maximum temperature 80°C 80°C
Length 3m
Outside diameter 70mm or  85mm
Inside diameter 62mm or 77mm

See more

Material ABS (Acrylonitrile Butadiene Styrene)
Groove spiral < 0.5° / 3m
Collapse rating 1960kPa
Bend rating 252N
Maximum temperature 80°C
Tensile strength 585kgF
Torque 25Nm
Effective length 3m
Outside diameter 70mm
Inside diameter 59mm

See more

Casing Material ABS (Acrylonitrile Butadiene Styrene)
Groove spiral < 0.5° / 3m
Collapse rating 1960kPA
Bend rating 252N
Maximum temperature 80°C
Tensile strength 585kgF
Torque 25Nm

See more
