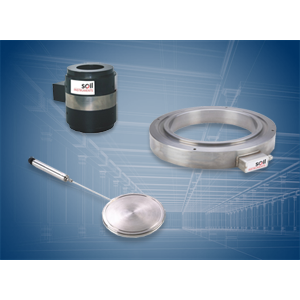

Load & Pressure cells



The Concrete Surface Mounted Strain Gauge is used for measuring strain in concrete structures including load bearing concrete beams and piles.
Load  & Pressure cells
  • Range (RO) 300, 500, 750, 1000, 1250, 1500, 1800, 2500, 3000 KN
  • Accuracy ± 0,5% RO
  • Repeatability 0,02 % RO
  • Output signal : 2 mV/V, 4...20mA.
  • Excitation : 5 - 15 VDC
  • Temperature range  from - 20 °C to+ 70 °C
  • Compensated temperature range  from - 10 °C to+ 50 °C
  • Overload150 % de l'EM
  • Material Stainless steel
  • Protection IP67
See more

Ranges (kPa) 300, 500, 700, 1000, 1500, 2000, 3000, 4000, 6000, 10,000, 15,000
Resolution 0.025% full scale
Accuracy 0.1% full scale
Linearity 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep

See more

Ranges (kN) 500 1000 1500 1800 2500 5000 10000
Resolution 0.025% full scale
Accuracy 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep
Thermistor type NTC 3k Ω Thermistor accuracy ±0.5% full scale

See more

Ranges (kPa) 300, 500, 700, 1000, 1500, 2000, 3000, 4000, 6000, 10,000, 15,000
Resolution 0.025% full scale
Frequency range 1700 – 2800Hz
Accuracy 0.1% full scale
Linearity 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep

See more

Ranges (kPa) 300, 500, 700, 1000, 1500, 2000, 4000
Resolution 0.025% full scale
Accuracy 0.1% full scale
Linearity 0.5% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Powder Coated Steel Cell
Excitation Method Pluck or sweep

See more
