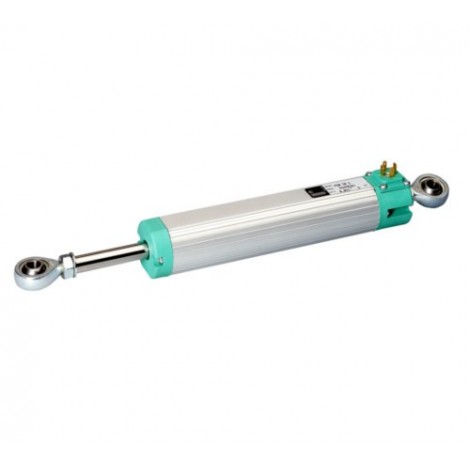

PC: Rectilinear displacement transducer - from 0 to 50, ..., 750 mm.

  • Measuring range from 0 to 50, 100, 150, 200, 300, 500, 750 mm.
  • Mechanical fixing and selfaligning linkage using 2 ball-joints.
  • Maximum angular movement up to ± 30°
    Independent linearity ± 0.05%.
  • Infinite resolution.
  • Grade of protection IP65
Log in to your account to display prices
account_circleSend to a friend

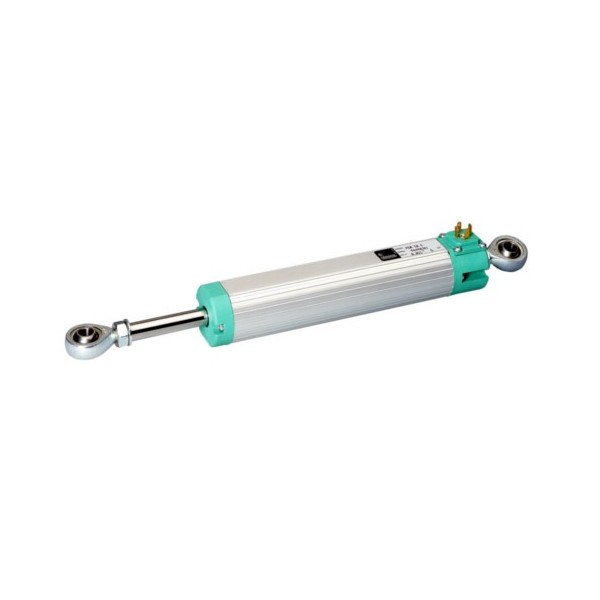

PC: Rectilinear displacement transducer - from 0 to 50, ..., 750 mm.

PC: Rectilinear displacement transducer - from 0 to 50, ..., 750 mm.

  • Measuring range from 0 to 50, 100, 150, 200, 300, 500, 750 mm.
  • Mechanical fixing and selfaligning linkage using 2 ball-joints.
  • Maximum angular movement up to ± 30°
    Independent linearity ± 0.05%.
  • Infinite resolution.
  • Grade of protection IP65



Applications

> <

The transducer is designed to satisfy extreme applicative demands in terms of mechanical strength.
The 10 mm diameter rod, large steel joints, and reinforced structure make this series mechanically ideal for metalworking, woodworking, and ceramics.
Installation is simplified by the lack of electrical signal variation at output outside theoretical electrical stroke.
The structure based on self-aligning and weight-bearing ball joints permits assembly with free movement of the transducer axle.

PC
