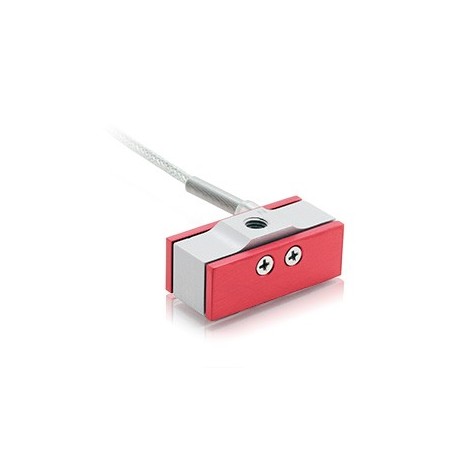

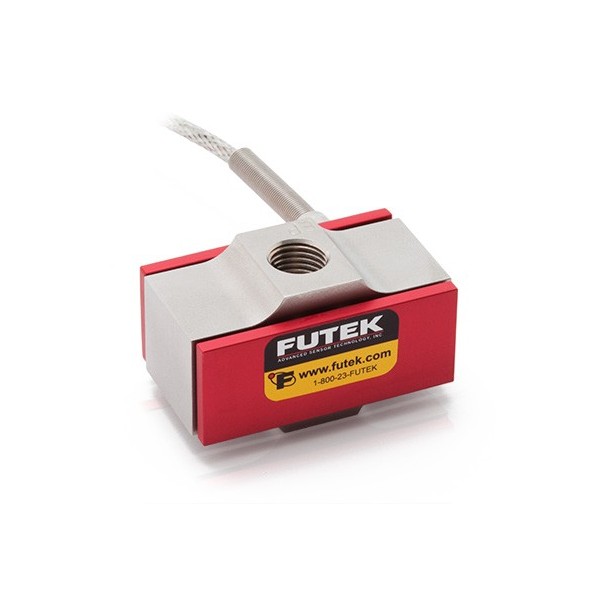

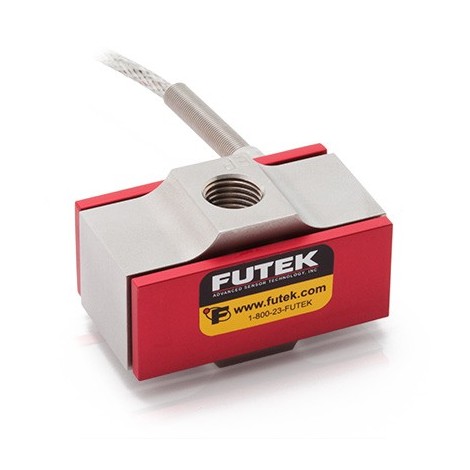

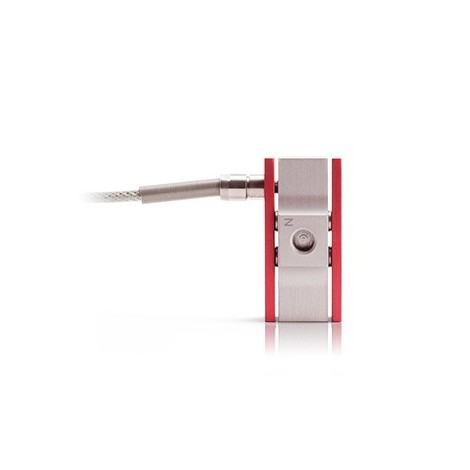

LRF350 : Low Profile Tension & Compression Load Cell +/- 75 Lb to 1000 Lb

Low Profile Tension & Compression Load Cell.
Capacities : +/- 200, 300, 500, 1000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.1%.
Material : Aluminum.
Connector output.

Log in to your account to display prices
Range
account_circleSend to a friend
LRF350 : Low Profile Tension & Compression Load Cell +/- 75 Lb to 1000 Lb

LRF350 : Low Profile Tension & Compression Load Cell +/- 75 Lb to 1000 Lb

Low Profile Tension & Compression Load Cell.
Capacities : +/- 200, 300, 500, 1000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.1%.
Material : Aluminum.
Connector output.



Applications

> <

The Inline Low Profile Tension & Compression Load Cell offers a compact design for inline loading applications. With female/female threads, 2024 Aluminum construction, with the choice of a 10 feet 4 conductor shielded PVC cable (28 AWG) or Strain Relief. It is well suited for low capacity requirements (LRF325) and for any applications that require a higher capacity range, please refer to the LRF350.

LRF325--LRF350
