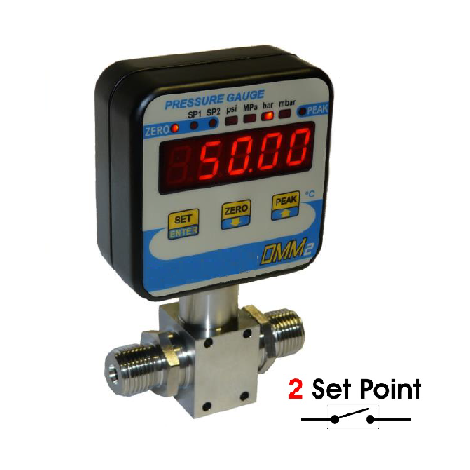

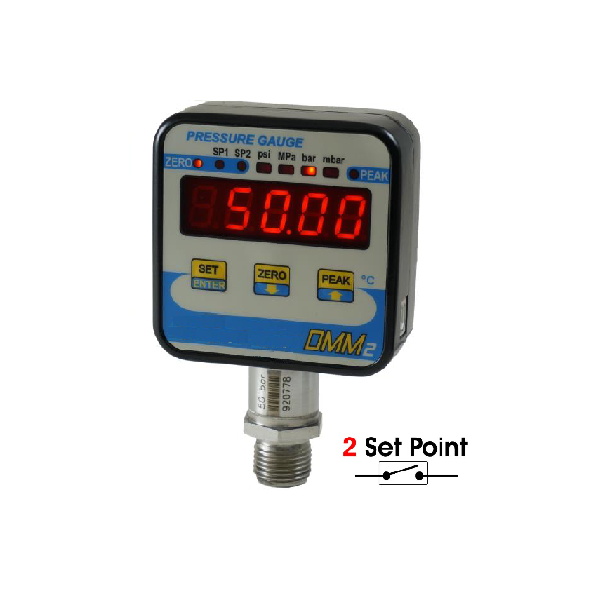

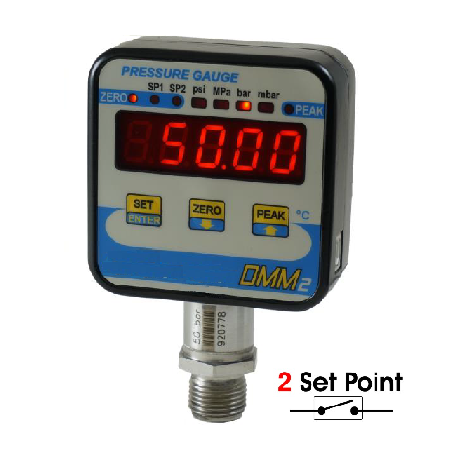

SM-DMM2 : Digital manometer From 1, ..., 2500 bar - Relay output
Digital manometers for RELATIVE, ABSOLUTE, DIFFERENTIAL, VACCUM measures.
Capacities from 1 bar to 2500 bar.
2 SET POINT programmable with relays output.
Measurement of the temperature of the fluid.
Linearity and hysteresis 0,15%.
Connection 1/2" GAS Male.
Options : USB, RS232, analog independant outputs
Log in to your account to display prices
Login
Login
The digital manometer SM-DMM2 series allows to assure an high level of reliability, versatility and inexpensiveness.
The sensitive part in contact with the fluid is entirely made of 17-4 PH stainless steel resistant to corrosion, and is adapted to dynamic applications.
With this manometer it is possible to measure TEMPERATURE and PRESSURE generated from air, gas, oil, water or any other type of non-corrosive fluid.
Integrated electronics allows you to customize the instrument in different configurations to suit different applications, thanks to the sampling rate that can be programmed from 2.5 to 1200 Hz
SM-DMM2
Digital manometers for RELATIVE, ABSOLUTE, DIFFERENTIAL, VACCUM measures.
Capacities from 1 bar to 2500 bar.
2 SET POINT programmable with relays output.
Measurement of the temperature of the fluid.
Linearity and hysteresis 0,15%.
Connection 1/2" GAS Male.
Options : USB, RS232, analog independant outputs
