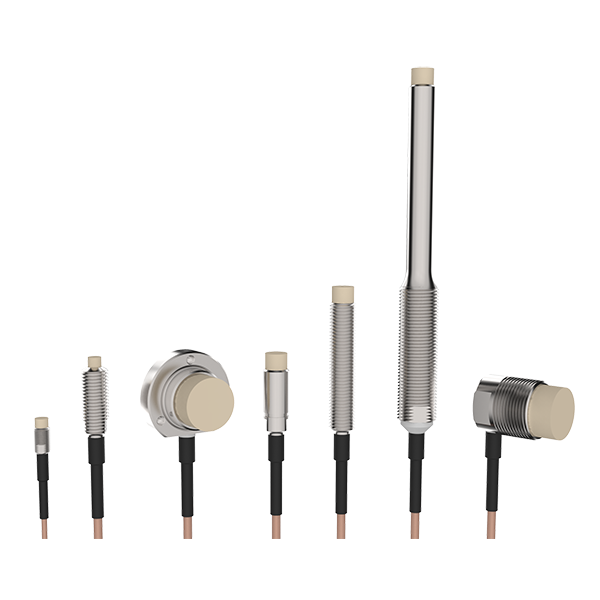

Eddy current probe T serie high accuracy

Range 0.5 - 10 mm
Linearity max. ±0.15 %
Resolution 0.03 µm
Dynamic 124 kS/s
Protection class max. IP68
Operating temperature up to +185 °C

Log in to your account to display prices
Versions
account_circleSend to a friend

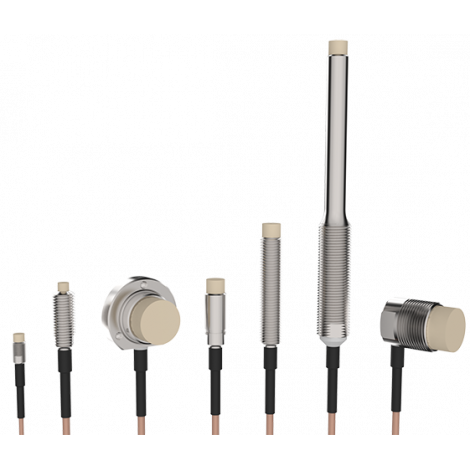

Eddy current probe T serie high accuracy

Eddy current probe T serie high accuracy

Range 0.5 - 10 mm
Linearity max. ±0.15 %
Resolution 0.03 µm
Dynamic 124 kS/s
Protection class max. IP68
Operating temperature up to +185 °C



Eddy current sensors detect the distance or the change to metal objects without contact, dynamically and extremely accurately. Eddy current probes are particularly suitable devices for non-contact measurements on metallic targets. Typical applications are measurements on rotating shafts for the detection of imbalance, vibration, out-of-roundness, air gap, radial/axial run-out, and much more besides. The extremely high resolution up to a level of 50nm enables the smallest of amplitudes to be detected. eddylab probes are designed for temperatures up to 185 °C, and are optimised for the entire temperature range with regard to temperature drift.

The TX electronics which are specially adapted to the respective sensor calculate an analogue output signal proportional to the distance. In addition, there is a USB and CAN interface for reading the data. The eddylab software developed by eddylab GmbH is the perfect complement to the TX series with its 3 functional areas (oscilloscope, FFT analysis, data logger).
