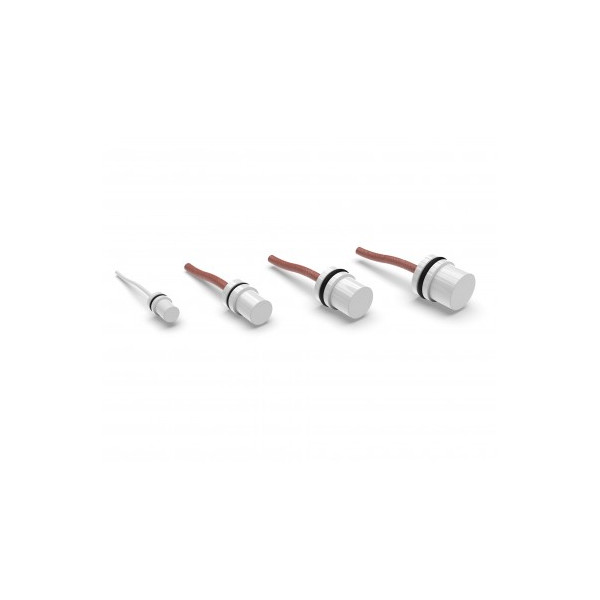

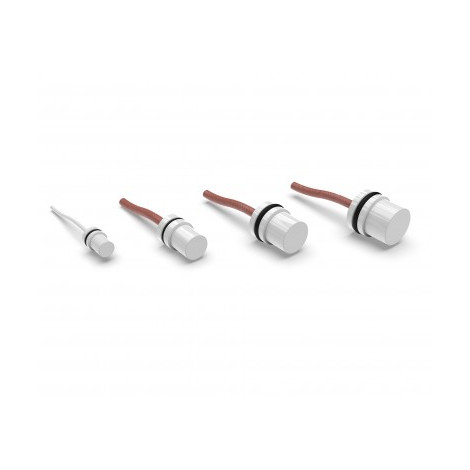

Eddy current probe CM serie - ceramic sensor, pressure resistant

Range 0.3, 0.5, 1, 2 mm
Linearity max. ±0.15 %
Pressure resistance 200 bar.
Resolution 0.03 µm
Protection class  IP68
Operating temperature up to +185 °C

Log in to your account to display prices
Versions
account_circleSend to a friend
Eddy current probe CM serie - ceramic sensor, pressure resistant

Eddy current probe CM serie - ceramic sensor, pressure resistant

Range 0.3, 0.5, 1, 2 mm
Linearity max. ±0.15 %
Pressure resistance 200 bar.
Resolution 0.03 µm
Protection class  IP68
Operating temperature up to +185 °C



Eddy current sensors detect the distance or the change to metal objects without contact, dynamically and extremely accurately. Eddy current probes are particularly suitable devices for non-contact measurements on metallic targets.
The CM Series are eddy current sensors, excellent for use in harsh industrial environments under high pressure and temperature conditions. The ceramic housing can be used as the pressurised component, there is no extra housing needed. All CM sensors are shielded. The combination of shielded coil and ceramic housing guarentees an universal use in limited space of machine parts. Measuring of lubrication gap of crankshafts is a typical application for the CM series.
