EASY CONNECT (EC) INCLINOMETER CASING

Material ABS (Acrylonitrile Butadiene Styrene)
Groove spiral < 0.5° / 3m
Collapse rating 1960kPa
Bend rating 252N
Maximum temperature 80°C
Tensile strength 585kgF
Torque 25Nm
Effective length 3m
Outside diameter 70mm
Inside diameter 59mm

Log in to your account to display prices
account_circleSend to a friend
EASY CONNECT (EC) INCLINOMETER CASING

EASY CONNECT (EC) INCLINOMETER CASING

Material ABS (Acrylonitrile Butadiene Styrene)
Groove spiral < 0.5° / 3m
Collapse rating 1960kPa
Bend rating 252N
Maximum temperature 80°C
Tensile strength 585kgF
Torque 25Nm
Effective length 3m
Outside diameter 70mm
Inside diameter 59mm



EC (Easy Connect) Casing is used in boreholes, embedded in fill material, cast into concrete or attached to structures.

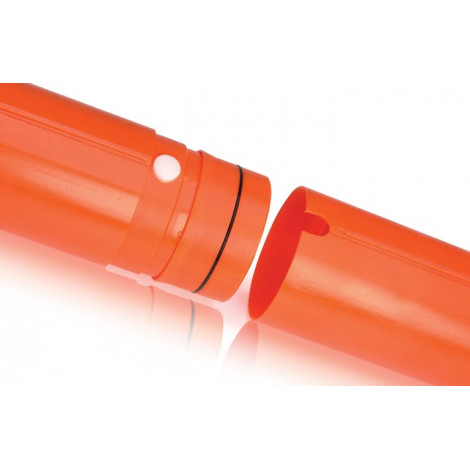

EC Casing is faster and easier to install than coupled inclinometer casing, requiring no rivets, tape or glue; simply push together and the joint is made.

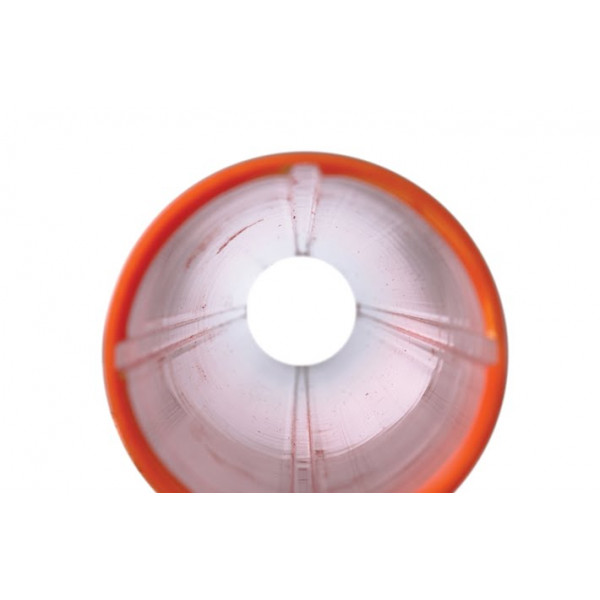

The casing can be extended or joined at any point along its length. EC Casing is manufactured using ABS extrusion techniques, resulting in an accurate groove profile with precise keyways formed at 90° into the internal surface. This allows for the accurate orientation of inclinometer probes or In-Place Inclinometer Sensors (IPIs).

EC Casing has been extensively tested to ensure that the machined joint is strong and resists the ingress of water and grout.
