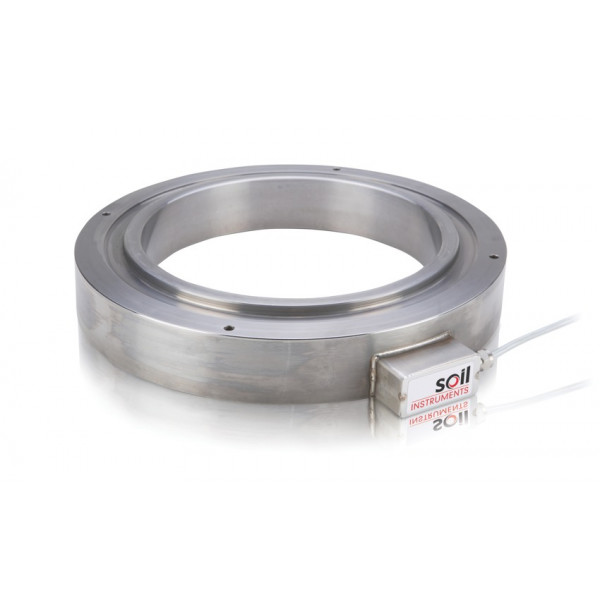

L3 - Strain gauge Through Hole / Donut Load Cells

  • Range (RO) 300, 500, 750, 1000, 1250, 1500, 1800, 2500, 3000 KN
  • Accuracy ± 0,5% RO
  • Repeatability 0,02 % RO
  • Output signal : 2 mV/V, 4...20mA.
  • Excitation : 5 - 15 VDC
  • Temperature range  from - 20 °C to+ 70 °C
  • Compensated temperature range  from - 10 °C to+ 50 °C
  • Overload150 % de l'EM
  • Material Stainless steel
  • Protection IP67
Log in to your account to display prices
account_circleSend to a friend
L3 - Strain gauge Through Hole / Donut Load Cells

L3 - Strain gauge Through Hole / Donut Load Cells

  • Range (RO) 300, 500, 750, 1000, 1250, 1500, 1800, 2500, 3000 KN
  • Accuracy ± 0,5% RO
  • Repeatability 0,02 % RO
  • Output signal : 2 mV/V, 4...20mA.
  • Excitation : 5 - 15 VDC
  • Temperature range  from - 20 °C to+ 70 °C
  • Compensated temperature range  from - 10 °C to+ 50 °C
  • Overload150 % de l'EM
  • Material Stainless steel
  • Protection IP67



Strain Gauge Load Cells are ideally suited for measuring loads in rock bolts, cable anchors and tendons, structural beams, piles, loads between tunnel supports and loads in pull-out tests on trial anchors.

Strain Gauge Load Cells measure compressive and tensile loads in rock bolts, cable anchors and tendons.
