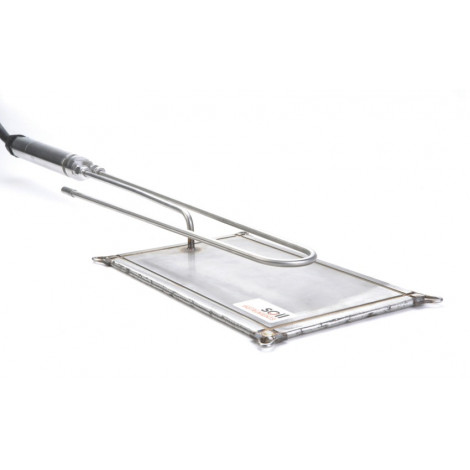

P10 : VIBRATING WIRE CONCRETE STRESS CELL

Ranges (kPa) 300, 500, 700, 1000, 1500, 2000, 3000, 4000, 6000, 10,000, 15,000
Resolution 0.025% full scale
Accuracy 0.1% full scale
Linearity 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep

Log in to your account to display prices
account_circleSend to a friend

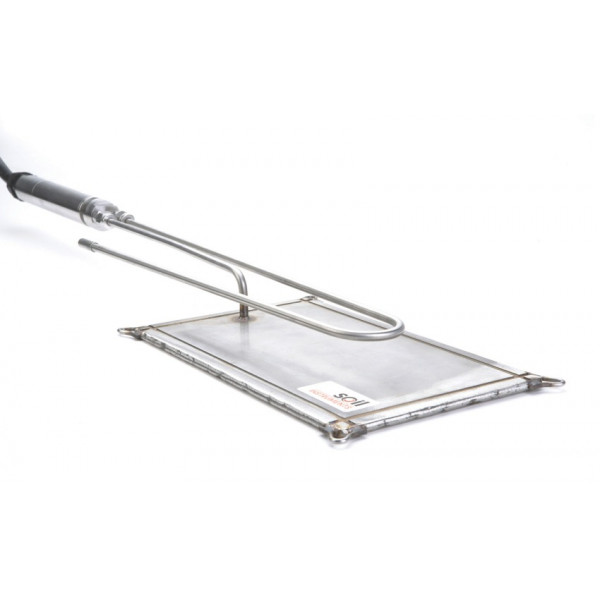

P10 :  VIBRATING WIRE CONCRETE STRESS CELL

P10 : VIBRATING WIRE CONCRETE STRESS CELL

Ranges (kPa) 300, 500, 700, 1000, 1500, 2000, 3000, 4000, 6000, 10,000, 15,000
Resolution 0.025% full scale
Accuracy 0.1% full scale
Linearity 0.1% full scale
Temperature Range -20 to 80°C
Overload 150% full scale
Material Stainless Steel
Excitation Method Pluck or sweep



The Vibrating Wire Concrete Stress Cell is used for measuring total stresses in tunneling process, mass concreting and rock walls in underground works.

The cell consists of a rectangular flat jack formed from two plates of steel welded together around the periphery.
The narrow gap between the plates is filled with hydraulic oil. A Vibrating Wire Pressure Transducer is connected to the cell by a short length of steel tubing, forming a closed hydraulic system.
