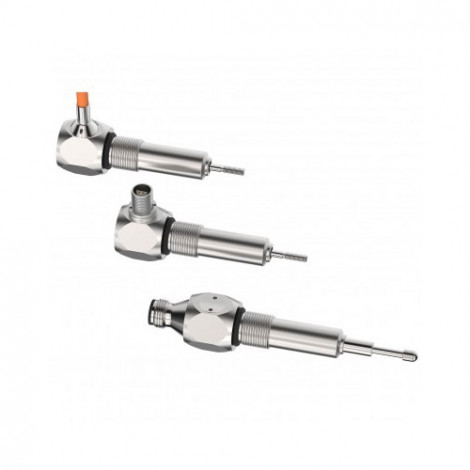

SM-F14 : LVDT inductive Position Transducer

Designed for integration into hydraulic and pneumatic cylinders or servo valves.
Ranges : 2 - 10 mm.
Pressure resistant up to 150 bar.
M14x1 mm thread or ø 12 mm clamping diameter.
Type : free core, push rod guided/ unguided, spring loaded.
Linearity up to ±0,1 %.
Output : AC, 0...10 V, 4...20 mA.
Protection class : IP67, (opt. IP68).
Operating temp. :-40 °C...+120 °C, opt. +200 °C.

Log in to your account to display prices
Capacité
account_circleSend to a friend

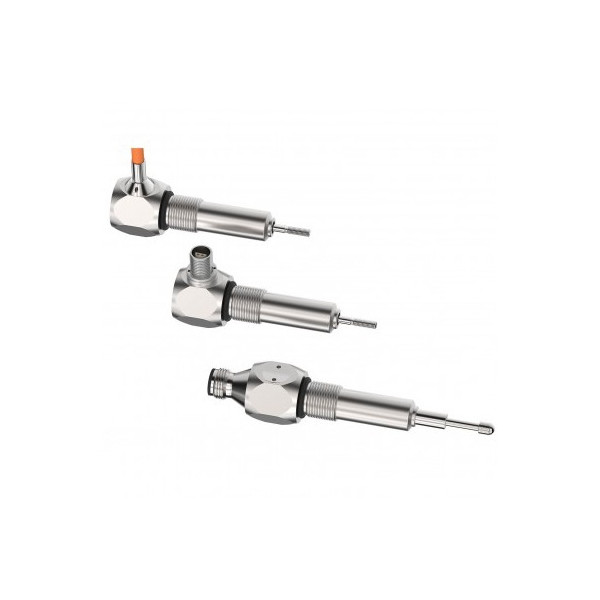

SM-F14 :  LVDT inductive  Position Transducer

SM-F14 : LVDT inductive Position Transducer

Designed for integration into hydraulic and pneumatic cylinders or servo valves.
Ranges : 2 - 10 mm.
Pressure resistant up to 150 bar.
M14x1 mm thread or ø 12 mm clamping diameter.
Type : free core, push rod guided/ unguided, spring loaded.
Linearity up to ±0,1 %.
Output : AC, 0...10 V, 4...20 mA.
Protection class : IP67, (opt. IP68).
Operating temp. :-40 °C...+120 °C, opt. +200 °C.
