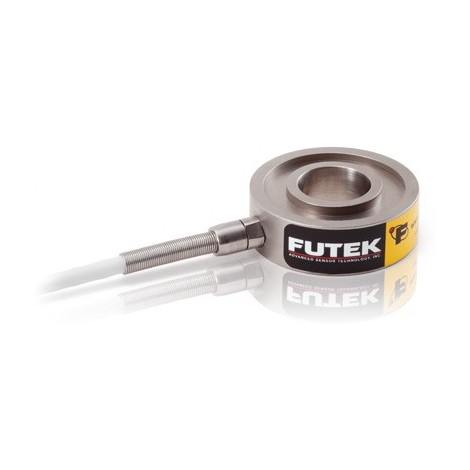

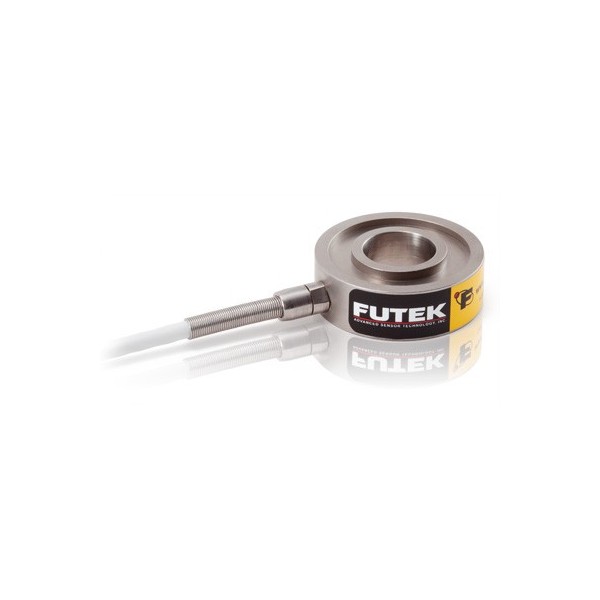

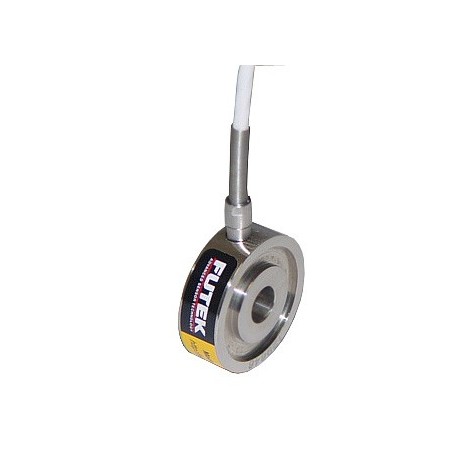

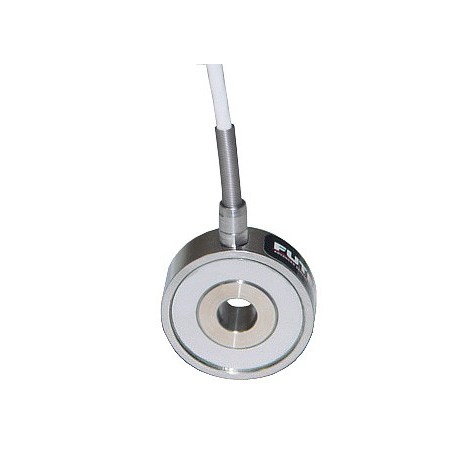

LTH350 : Donut compression Load Cell - 100 Lb ... 5000 Lb

Compression Donut Load Cell.
Capacities : 0 to 100, 250, 500, 1000, 2000, 3000, 5000 Lb.
Variable inside diameter to specify :  1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8''.
Rated output : 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.

Log in to your account to display prices
account_circleSend to a friend
LTH350 : Donut compression Load Cell - 100 Lb ... 5000 Lb

LTH350 : Donut compression Load Cell - 100 Lb ... 5000 Lb

Compression Donut Load Cell.
Capacities : 0 to 100, 250, 500, 1000, 2000, 3000, 5000 Lb.
Variable inside diameter to specify :  1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8''.
Rated output : 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.



Applications

> <

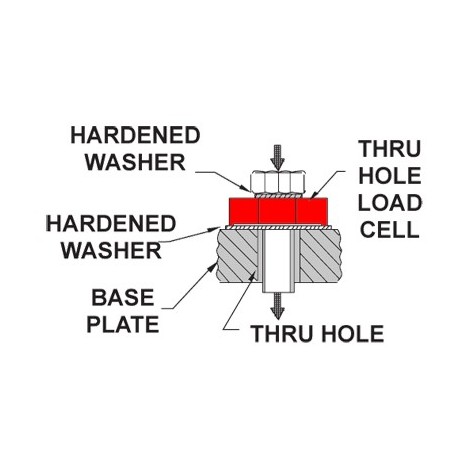

LTH350 is a Donut Load Cell built for compression applications (Press control). The Donut Load Cell LTH350  has a very robust Stainless Steel construction and offer several  I.D. range between 1/8” and 5/8”.

The LTH350 Load Cell offers high accuracy ±0.5% and high stiffness. This load cell is supplied with  5 points NIST calibration certificate and can be customized to meet your requirements.

LTH350
