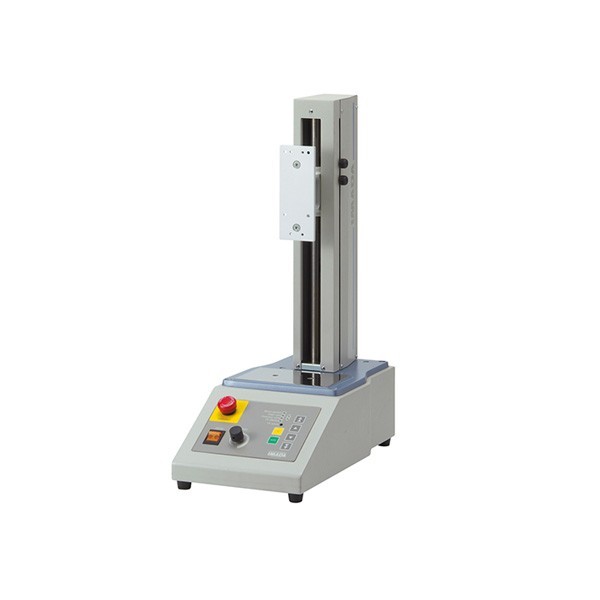

MX-5000: Vertical Motorized force test stands

Vertical motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 5000N.
Travel speed from 10 to 300mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power  AC100V to 240V, free input.
Travel distance 340mm.

Log in to your account to display prices
Versions
account_circleSend to a friend
MX-5000:  Vertical Motorized force test stands

MX-5000: Vertical Motorized force test stands

Vertical motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 5000N.
Travel speed from 10 to 300mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power  AC100V to 240V, free input.
Travel distance 340mm.



Applications

> <
Vertical motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement.
  • Test stand with infinitely adjustable travel speed from 10 to 300mm/min.

  • 3 OPERATIONS MODES :
    Single or continuous operation for constant testing conditions.
    - manual operation: Feed continuous so long as button is pressed or he limit switch is reached.
    - single cycle operation: The force gauge covers a defined distance for one-time.
  • - continuous cycle operation: Force gauge travels a defined distance continously up and down.

AVALAIBLE OPTIONS:
-E option Equips an encoder which displays speed and distance.
-S option Equips a length scale.
-L option Equips 200mm or 250mm longer stroke than the standard model
MX-5000
