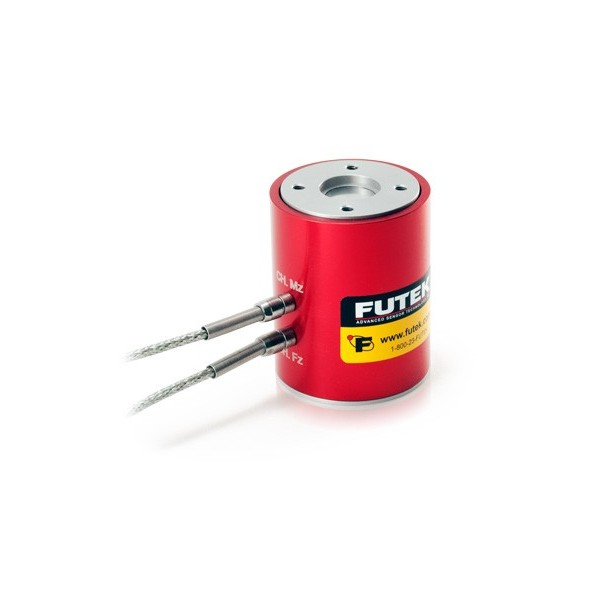

MBA500: Torque and Thrust Biaxial Sensor

Torque and Thrust Biaxial Sensor (Measure Fz and Mz).
Fz:  50, 100, 200, 500 Lb.
Mz:  5, 10, 15, 20, 55 Nm.
Non Linearity : < 0.5%.
Material : Aluminum.
Cable Output.

Log in to your account to display prices
Capacité
account_circleSend to a friend
MBA500: Torque and Thrust Biaxial Sensor

MBA500: Torque and Thrust Biaxial Sensor

Torque and Thrust Biaxial Sensor (Measure Fz and Mz).
Fz:  50, 100, 200, 500 Lb.
Mz:  5, 10, 15, 20, 55 Nm.
Non Linearity : < 0.5%.
Material : Aluminum.
Cable Output.



Applications

> <

The MBA500 Torque and Thrust Bi-Axial Load Cell is design to measure reaction torque moments as well as tension and compression loads, all in one transducer. Temperature compensated and constructed of all aluminum, this torque/thrust sensor is able to achieve an impressive 0.2% nonlinearity and yet provide 150% (50 to 150 lb) 125% ((200 lb) over-capacity. Excellent performance and high precision are achieved through two separate outputs for applied torque and thrust forces. Force/Torque sensors are used throughout industry for product testing, robotic assembly, grinding and polishing. In research, our sensors are used in robotic surgery, haptics, rehabilitation, neurology and many others applications.

The MBA500 Torque and Thrust Biaxial Sensor offers an excellent solution for measuring Loads in tension and compression as well as torque in clockwise and counterclockwise direction. The MBA500 is compact weighing only 6.5 oz, and offers a compact design.
