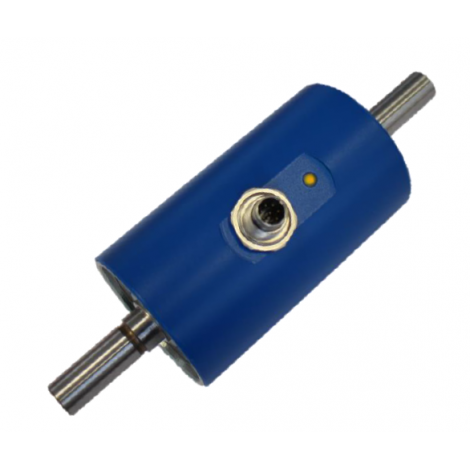

SM2300: Without contact Rotary Torque sensor - From +/- 0.5 to 100 Nm, option encoder.

Rotary Torque Sensor without contact, integrated electronic.
Measuring Range: +/- 0.5, 1, 2.5, 10, 20, 50, 1000 Nm.
Output signals: 0-10 V/4-20 mA/CAN-Bus/USB
Rotational speed: ≤ 10.000 rpm
Non linearity: 0.5%.
Integrated encoder 360 PPR (Optionnal, contact us).
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50.  (option IP65)

Log in to your account to display prices
Range
account_circleSend to a friend
SM2300: Without contact Rotary Torque sensor - From +/- 0.5 to 100 Nm, option encoder.

SM2300: Without contact Rotary Torque sensor - From +/- 0.5 to 100 Nm, option encoder.

Rotary Torque Sensor without contact, integrated electronic.
Measuring Range: +/- 0.5, 1, 2.5, 10, 20, 50, 1000 Nm.
Output signals: 0-10 V/4-20 mA/CAN-Bus/USB
Rotational speed: ≤ 10.000 rpm
Non linearity: 0.5%.
Integrated encoder 360 PPR (Optionnal, contact us).
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50.  (option IP65)



Applications

> <

Due to its robustness, SM2200 is especially suitable for End-of-line tests and application under harsh environment conditions.

The integrated readout electronics represents through its range of 1 kHz and through its minimal power supply (5-28 V) an optimal device for simple measurements.
