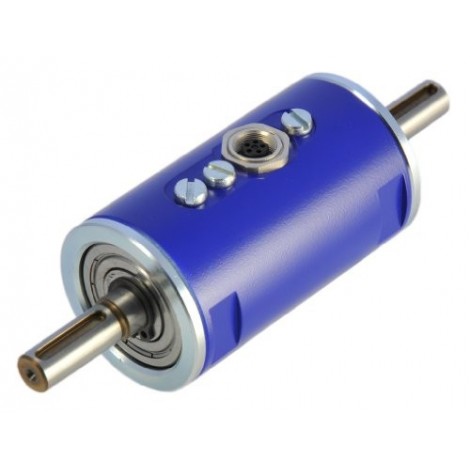

SM2000: Without contact Rotary Torque sensor - From +/- 2.5 to 500 Nm

Rotary Torque Sensor without contact, itegrated electronic.
Measuring Range: +/- 2.5, 7.5, 17.5, 75, 175, 250, 500 Nm.
Rated Output: +/- 2V (From 0.5 to 4.5 V).
Non linearity: 1%.
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50.

Log in to your account to display prices
Capacité
account_circleSend to a friend
SM2000: Without contact Rotary Torque sensor - From +/- 2.5 to 500 Nm

SM2000: Without contact Rotary Torque sensor - From +/- 2.5 to 500 Nm

Rotary Torque Sensor without contact, itegrated electronic.
Measuring Range: +/- 2.5, 7.5, 17.5, 75, 175, 250, 500 Nm.
Rated Output: +/- 2V (From 0.5 to 4.5 V).
Non linearity: 1%.
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50.



Applications

> <

Due to its robustness, SM2000 is especially suitable for End-of-line tests and application under harsh environment conditions.

The integrated readout electronics represents through its range of 1 kHz and through its minimal power supply (9-12 V) an optimal device for simple measurements. The analogue output signal of 0-5 V can be processed without difficulties in various systems.
