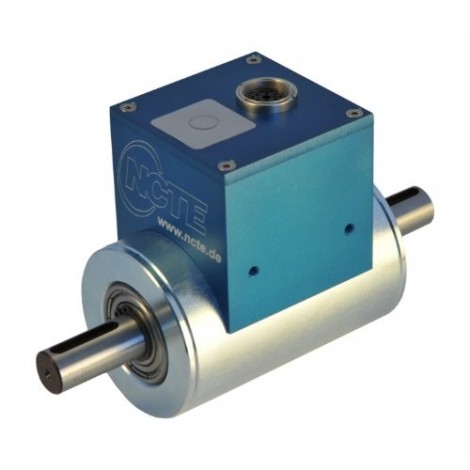

Serie 3000: Non-Contact Rotary Torque sensor - From +/- 50 to 2000 Nm

Series 3000 disposes of integrated 2 kHz-electronics.
Integrated encoder 360 PPR (Optionnal, contact us).
Measuring Range: +/- 50, 100, 250, 500, 1000, 2000 Nm.
Rated Output: 0...10V, 4...20 mA.
Non linearity: 0.2%.
Supply voltage: 11-28 VDC.
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50.

Log in to your account to display prices
Capacité
account_circleSend to a friend

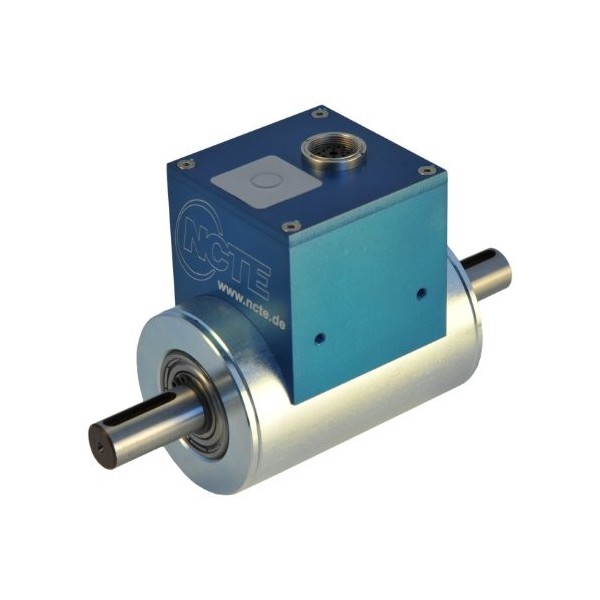

Serie 3000: Non-Contact Rotary Torque sensor - From +/- 50 to 2000 Nm

Serie 3000: Non-Contact Rotary Torque sensor - From +/- 50 to 2000 Nm

Series 3000 disposes of integrated 2 kHz-electronics.
Integrated encoder 360 PPR (Optionnal, contact us).
Measuring Range: +/- 50, 100, 250, 500, 1000, 2000 Nm.
Rated Output: 0...10V, 4...20 mA.
Non linearity: 0.2%.
Supply voltage: 11-28 VDC.
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50.



Applications

> <

Series 3000 is the entrance into the world of accurate measurement. Simple measurements of test samples and accurate monitoring of finalisation processes can be carried out economically and reliably by means of this sensor.

Series 3000 disposes of integrated 2 kHz-electronics and offers as required either an analogue (0-10 V, 4-20 mA) or a digital output (RS232, frequency output, PWM).

Serie 3000
