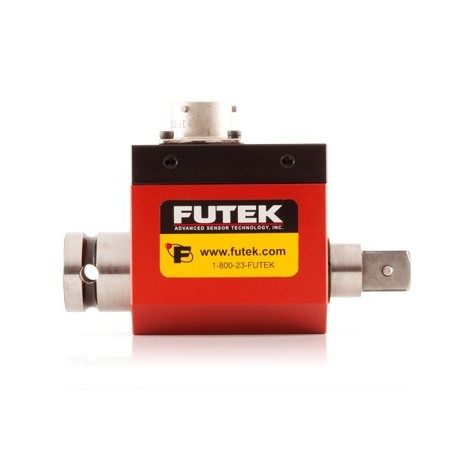

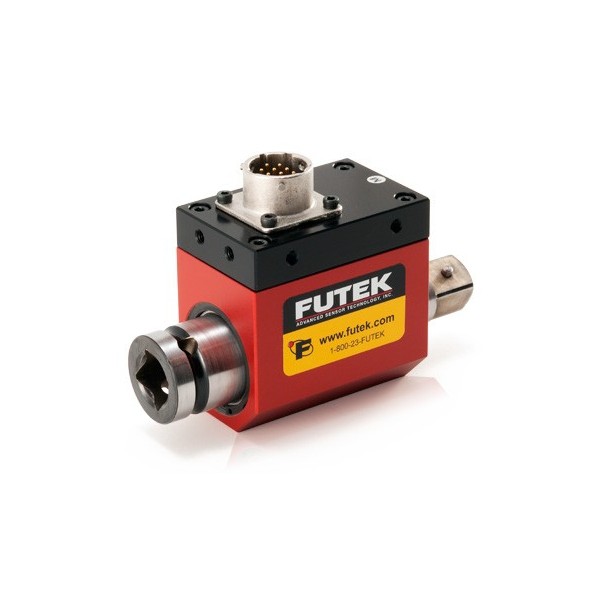

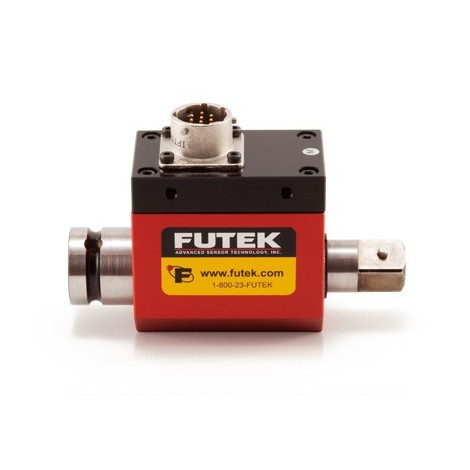

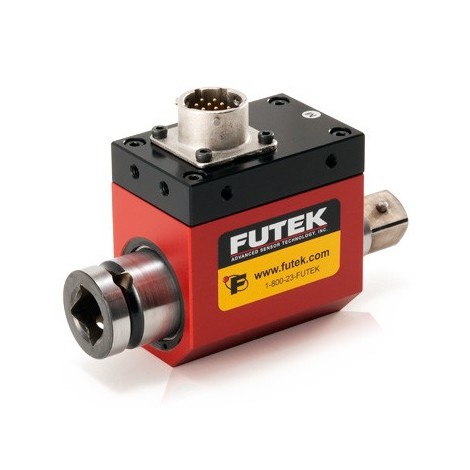

TRD605: Rotary Torque Sensor (With Encoder) - +/- 12 ... 1000 Nm

Non-Contact Square Drive Rotary Torque Sensor with Encoder.
Capacities : 12, 18, 50, 100, 160, 250, 300, 500, 1000 Nm.
Rated output :  +/- 5 mV/V.
Non Linearity : 0.2%.
Material : Stainless steel.
Encoder output: TTL.
Safe overload: 150%.
Excitation:  11 to 26 VDC.
Encoder excitation: 5 VDC.
Rotational Speed: 7000  RPM.
Temperature Range: 5 à 55 °C.

Log in to your account to display prices
Capacité
account_circleSend to a friend
TRD605: Rotary Torque Sensor (With Encoder) - +/- 12 ... 1000 Nm

TRD605: Rotary Torque Sensor (With Encoder) - +/- 12 ... 1000 Nm

Non-Contact Square Drive Rotary Torque Sensor with Encoder.
Capacities : 12, 18, 50, 100, 160, 250, 300, 500, 1000 Nm.
Rated output :  +/- 5 mV/V.
Non Linearity : 0.2%.
Material : Stainless steel.
Encoder output: TTL.
Safe overload: 150%.
Excitation:  11 to 26 VDC.
Encoder excitation: 5 VDC.
Rotational Speed: 7000  RPM.
Temperature Range: 5 à 55 °C.



Applications

> <

Rotary Torque Sensor - Non Contact Square Drive with Encoder offers a unique solution for torque auditing applications. The TRD605 Rotary Torque Sensor - Non Contact Square Drive with Encoder is available in a wide capacity range and utilizes strain gauge technology.
