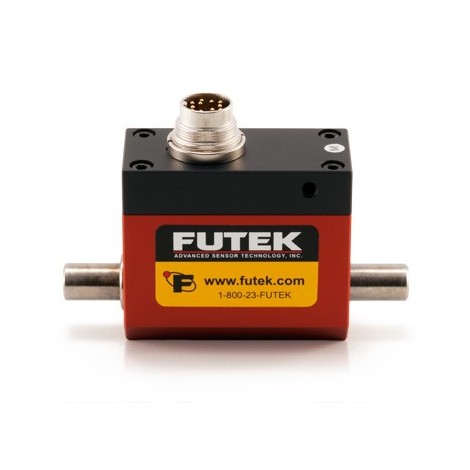

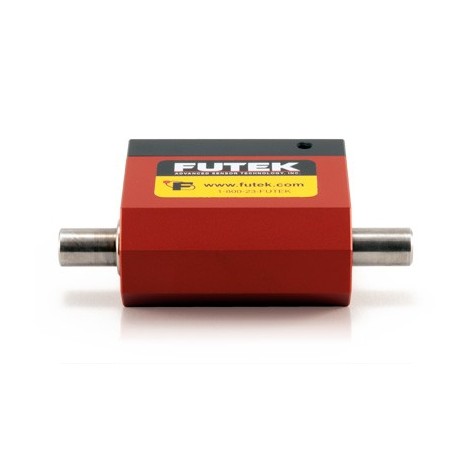

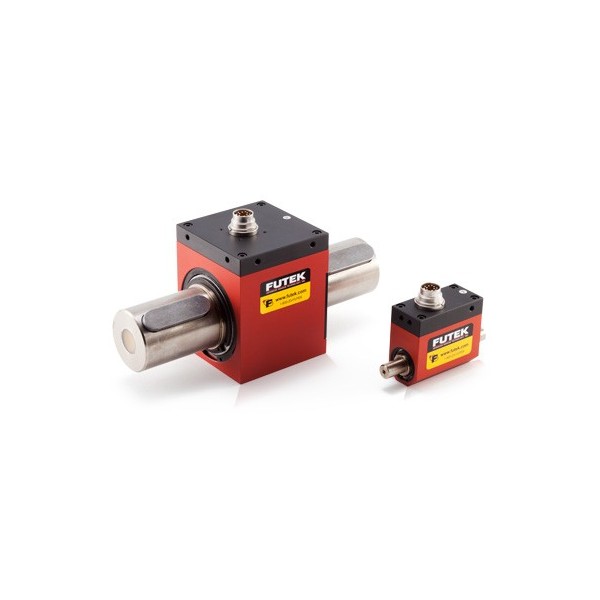

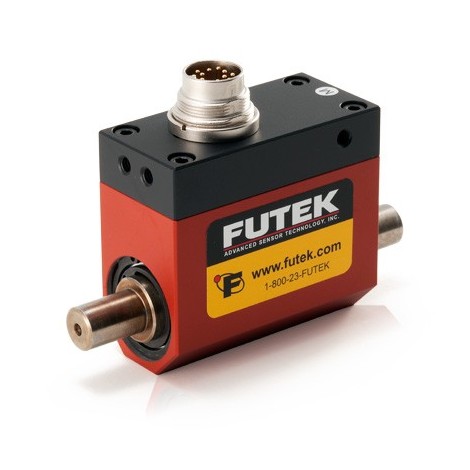

TRS605: Rotary Torque Sensor Non contact shaft to shaft with Encoder - +/- 1 ... +/- 1000 Nm

  • Non-Contact Shaft to Shaft Rotary Torque Sensor with Encoder.
  • Capacities : 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000 Nm.
  • Rated output : 2 mV/V.
  • Non Linearity : 0.2%.
  • Encoder output: TTL.
  • Safe overload: 150%.
  • Excitation:  5 VDC.
  • Rotational Speed: 7000  RPM
Log in to your account to display prices
Capacité
account_circleSend to a friend
TRS605: Rotary Torque Sensor Non contact shaft to shaft with Encoder - +/- 1 ... +/- 1000 Nm

TRS605: Rotary Torque Sensor Non contact shaft to shaft with Encoder - +/- 1 ... +/- 1000 Nm

  • Non-Contact Shaft to Shaft Rotary Torque Sensor with Encoder.
  • Capacities : 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000 Nm.
  • Rated output : 2 mV/V.
  • Non Linearity : 0.2%.
  • Encoder output: TTL.
  • Safe overload: 150%.
  • Excitation:  5 VDC.
  • Rotational Speed: 7000  RPM



Applications

> <

TRS605, FUTEK’s Rotary Torque Sensor - Non contact shaft to shaft with Encoder offers a unique solution for torque auditing applications. The TRS605 Rotary Torque Sensor - Non contact shaft to shaft with Encoder is available in a wide capacity range and utilizes strain gauge technology.

TRS605
