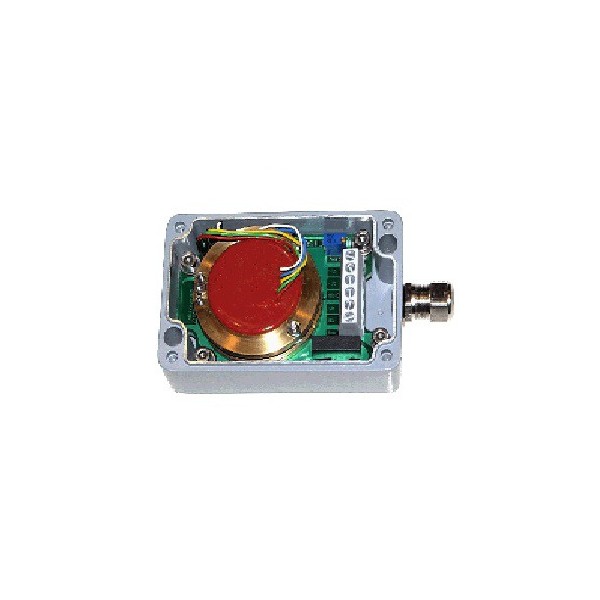

SBS-1U: Sensor box (servo Inclinometer) - Output signal 5V

  • Robust pressure die cast aluminium with an integrated servo inclinometer
  • Measuring uniaxial acceleration or inclination, Output signal 0-5V.
  • Range : +/-1°.
  • High precision.
    Degree of Protection IP 65.
  • Sensor and signal conditioner electrically isolated from housing.
  • Temperature drift compensation.
  • Insensitive of interference frequencies.
Log in to your account to display prices
account_circleSend to a friend
SBS-1U: Sensor box (servo Inclinometer) - Output signal 5V

SBS-1U: Sensor box (servo Inclinometer) - Output signal 5V

  • Robust pressure die cast aluminium with an integrated servo inclinometer
  • Measuring uniaxial acceleration or inclination, Output signal 0-5V.
  • Range : +/-1°.
  • High precision.
    Degree of Protection IP 65.
  • Sensor and signal conditioner electrically isolated from housing.
  • Temperature drift compensation.
  • Insensitive of interference frequencies.

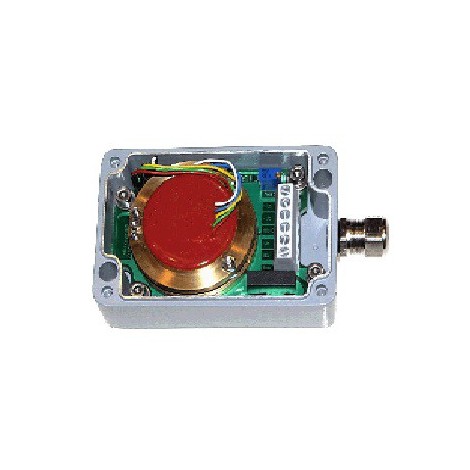

The SBS-1U is a pressure die cast aluminium sensor housing (IP65) with an integrated sensor for measuring high precision uniaxial inclination.
As well as the sensor, the box contains a signal conditioner with 5V output and a separate, highly stable supply voltage that can be used externally as a reference point.

Furthermore, the signal conditioner includes an active low pass filter, whose upper cut-off frequency / settling time can be adjusted to suit the measurement task, and a noise voltage filter to guarantee the EMC. Interference signals caused by unwanted ground currents are eliminated by electrically isolating sensor and signal conditioner from the housing.

SBS-1U
