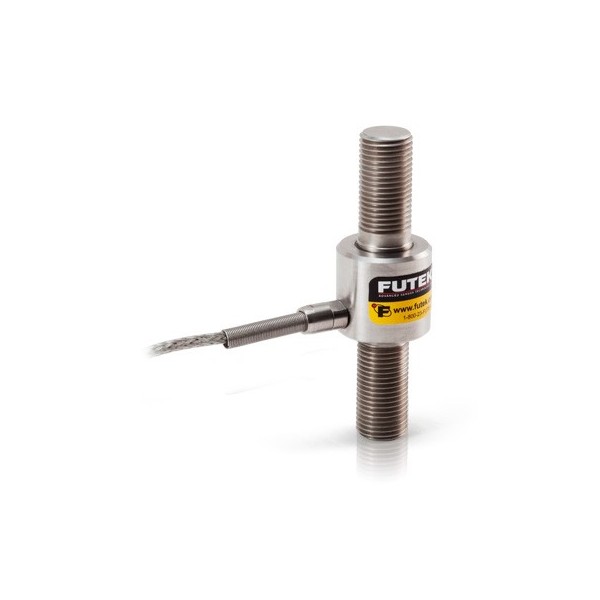

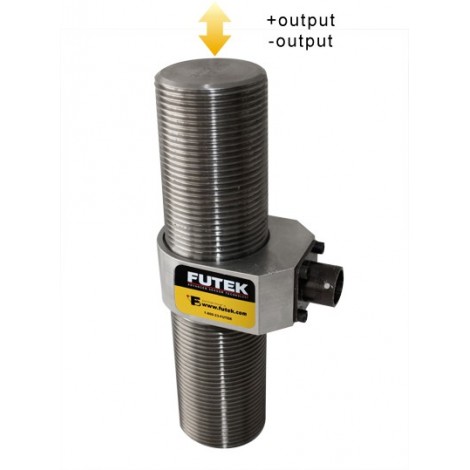

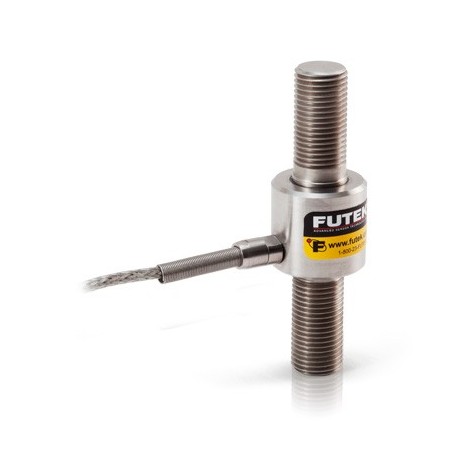

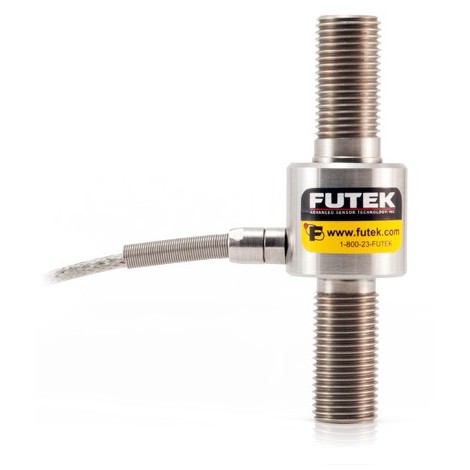

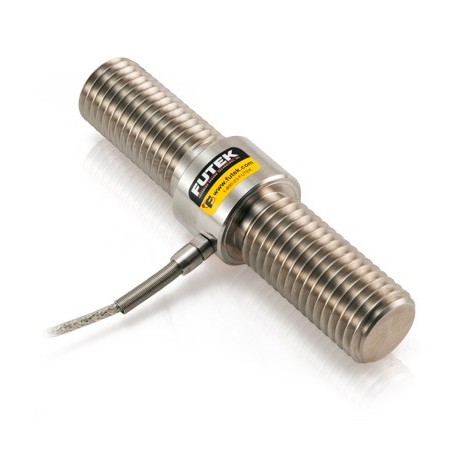

LCM525 -- LCM550: Tension and Compression Threaded Rod Load Cell

Tension and Compression Threaded Rod Load Cell.
Capacities : +/- 20000, 50000 Lb
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : 17-4 PH stainless steel.
Cable output.

Log in to your account to display prices
Range
account_circleSend to a friend
LCM525 -- LCM550: Tension and Compression Threaded Rod Load Cell

LCM525 -- LCM550: Tension and Compression Threaded Rod Load Cell

Tension and Compression Threaded Rod Load Cell.
Capacities : +/- 20000, 50000 Lb
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : 17-4 PH stainless steel.
Cable output.



Applications

> <

The LCM In Line Tension and Compression Load Cell model has a very robust and compact construction available in Stainless Steel, with male threads and a 4 conductor shielded PVC cable. Model LCM525-550 is an In Line Load Cell built for Endurance, Press, or Inline applications. It is also available with metric threads.
The In Line Load Cell offers high stiffness and accuracy. It has Deflection of 0.001” nominal  and 0.2% Nonlinearity.This load cell  can be improved and customized to meet your requirements.

LCM525 / 550
