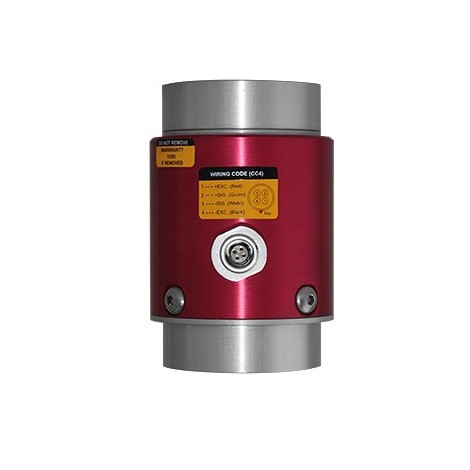

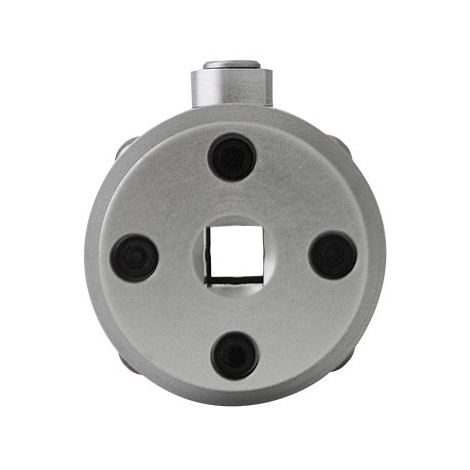

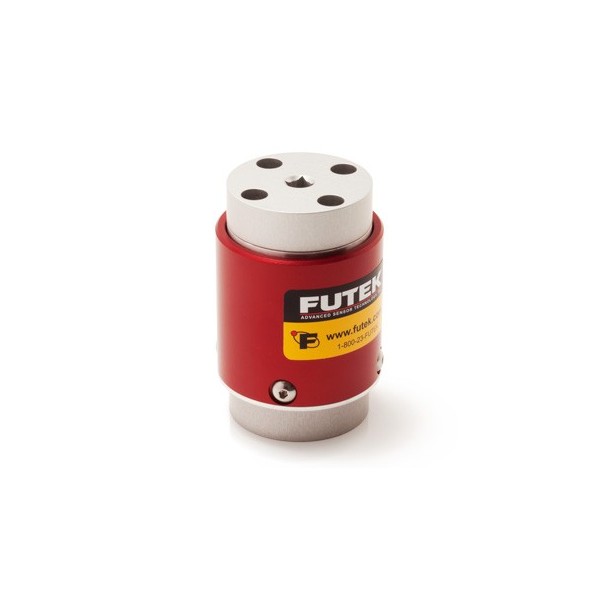

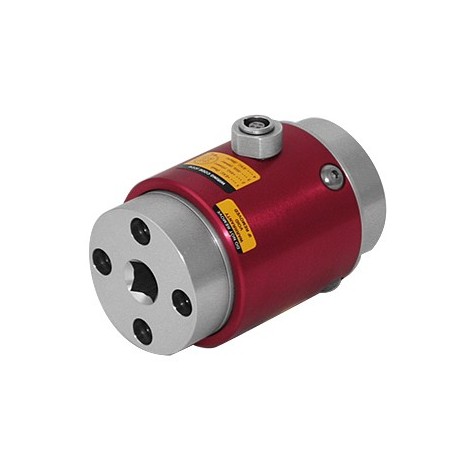

TDD400: Reaction Torque Sensor - Square Drive - 0.04 ... 60 Nm

Strain gage, Reaction Torque Sensor with Square Drive.
Capacities : 0.04, 0.08, 0.15, 0.35, 1.2, 3, 7, 12, 23, 60 Nm.
Rated output : 1-2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Connector output.

Log in to your account to display prices
Capacité
account_circleSend to a friend
TDD400: Reaction Torque Sensor - Square Drive - 0.04 ... 60 Nm

TDD400: Reaction Torque Sensor - Square Drive - 0.04 ... 60 Nm

Strain gage, Reaction Torque Sensor with Square Drive.
Capacities : 0.04, 0.08, 0.15, 0.35, 1.2, 3, 7, 12, 23, 60 Nm.
Rated output : 1-2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Connector output.



Applications

> <

FUTEK’s Reaction Torque Sensor - Square Drive offers a unique solution for Torque auditing applications. The TDD400 Reaction Torque Sensor - Square Drive is available in Aluminum construction with a built-in Overload Protection up to 400 in-oz.

The standard TDD400 Reaction Torque Sensor - Square Drive can be modified or customized to meet your requirements. The TDD400 Reaction Torque Sensor - Square Drive Series manufactured in USA and uses metal foil strain gauge technology.

TDD400
