W10 : V-Notch triangular Weirs

Vibrating Wire precision water level sensor
Simple in, low cost and robust instrument
Accurate and sensitive water level monitoring
High resolution monitoring
Low maintenance system
Range: 300mm
Resolution*: 0.025% full scale (minimum)
Material: Stainless Steel

Log in to your account to display prices
account_circleSend to a friend
W10 : V-Notch triangular Weirs

W10 : V-Notch triangular Weirs

Vibrating Wire precision water level sensor
Simple in, low cost and robust instrument
Accurate and sensitive water level monitoring
High resolution monitoring
Low maintenance system
Range: 300mm
Resolution*: 0.025% full scale (minimum)
Material: Stainless Steel



Applications

> <

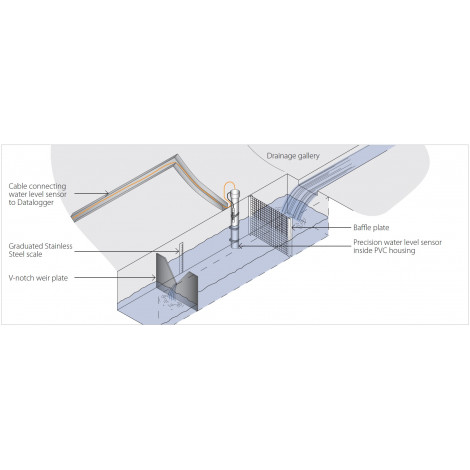

The V-Notch Weir System is used to measure water flow volume. It is used predominately in dams, open channels such as streams

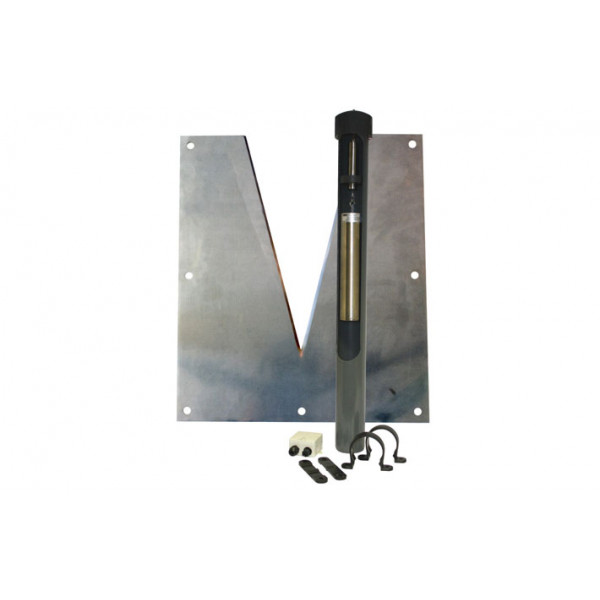

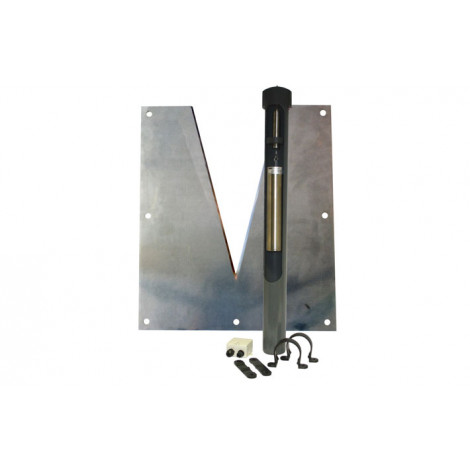

and in tunnels. The system comprises a Stainless Steel plate with a notch profile chosen to suit predicted flow rates.

Flow of water over the weir head can be measured optically with a manual steel scale, or by using a Vibrating Wire transducer.

Readings can be taken manually with a Vibrating Wire readout or remotely by means of a data acquisition system.
