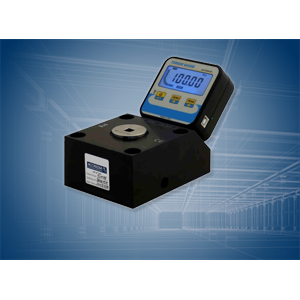

Digital Torque sensor
Hand-held torque meter with separate sensor for measuring the torque of screws, components, screw and plug connectors, drive shafts etc.
2 operation modes: real time and peak force.
Capacities : +/-0.5, 2, 5, 10 N.
Accuracy : 0.5% FS.
Sampling rate of 2000 times/sec.
Storage of 1000 values.
Output signal : RS 232 C, USB, ±2V DC, Mitutoyo Digimatic.
Measuring capacities from 0.5*, 2,5*, 5, 10, 25, 50, 100, 250, 500, 1000, 2000 Nm.
Measurement in clockwise and anticlockwise direction.
Use for the calibration of torque wrench and screwdrivers.
Linearity and Hysteresis 0,20%.
High mechanical resistance.
Function ZERO, PEAK, First PEAK, FILTER.
Degree of protection IP40.
Output RS232 on request.
- Measuring ranges :
- - 0.20 - 80.0 cN.m (version i-8)
- - 2.0 - 800.0 cN.m (version i-80)
- Selectable units: lbf-in, Kgf-cm, N-cm and N-m
- Accuracy: +/- 0.5%.
- Display : LCD 4 digits
- Measuring direction: clockwise and counterclockwise
- Storage: 800 values
- Autonomy: 12 hours of continuous use
- Charging time: 3h
- LEDs : Green: OK, Red flashing : Alarm
- Modes: Peak Hold, Peak Down, Tracking.
- Dimensions: 160 x 125 x 55 mm
- Screwdriving simulators included
Torque tester for checking the opening and close torque of screw caps of bottles, glas jars, cosmetics etc
2 operation modes: real time and peak force.
Capacities : +/-2, 5, 10 N.
Accuracy : 0.5% FS.
Sampling rate of 2000 times/sec.
Storage of 1000 values.
Output signal : RS 232 C, USB, ±2V DC, Mitutoyo Digimatic.
- Measurement ranges :
- - 1 N・m (Version CD-10M)
- - 10 N・m (Version CD-100M)
- Accuracy: ±0.5％
- Display: LCD
- Measuring direction: Clockwise and counter-clockwise
- Data storage: 800 values
- Measuring modes: Track, P-P (peak-to-peak), P-D (negative peak), C (real time output)
- Sleep mode: Every 10 minutes of non-use
- Charging time: 3hours
- Time of continuous use: 12 hours
- Weight: ~1kg
- Dimensions: 160 x 125 x 55 mm
- Screwing simulators: SJ10 (Version CD-10M), SJ50/SJ10K (Version CD-100M)
- Accessory: AC/DC Adapter
- Measurement range : 0.1 to 20 N・m
- Accuracy: ±0.5％
- Display: 4 digits
- Measuring direction: Clockwise and counter-clockwise
- Data storage: 800 values
- Sampling: 180 data per second
- Measuring modes: Track, P-P (peak-to-peak), P-D (negative peak), C (real time output)
- Charging time: 6 hours
- Time of continuous use: 12 hours
- Weight: ~1.5kg
- Dimensions: 130 x 180 x 34 mm
- Screwdriving simulators: SJ-50 (5 N.m), SJ-100 (20 N.m)
- Accessories: AC/DC Adapter,Rechargeable Battery,Carrying Case, Inspection Report, Proofreading Certificate, Traceability System Figure.
- Measurement range : 0.3 to 25 N・m
- Accuracy: ±0.5％
- Torque display: 4-digit LED
- Impact screen: 2-digit LED
- Measuring direction: Clockwise and counter-clockwise
- Impact measurement: 0 to 99
- Impact time measurement: 0.1 to 9.9 sec.
- Measuring modes: Track, P-P (peak-to-peak), P-D (negative peak)
- Charging time: 6 hours
- Time of continuous use: 8 hours
- Power off: Automatic after 5 minutes of non-use
- Weight: ~2.1kg
- Dimensions: 150 x 220 x 74 mm
- Screwing simulators: M10 soft, M10 rigid
- Accessories: AC/DC Adapter,Rechargeable Battery,Carrying Case, Inspection Report, Proofreading Certificate, Traceability System Figure.
- Measuring range : 50, 200, 500 Nm
- Accuracy: ±0.5％
- Torque display: 4-digit LED
- Impact screen: 2-digit LED
- Impact measurement: 0 to 99 strokes
- Impact time measurement: 0.1 to 9.9 sec.
- Measuring modes: Track, P-P (peak-to-peak), P-D (negative peak)
- Charging time: 3h
- Time of continuous use: 8 hours
- Power off: Automatic after 5 minutes of non-use
- Display weight: 600g
- Weight of the simulator: 50Nm - 632g; 200Nm - 1.8kg; 500Nm - 3.5kg
- Cable: 1 meter
- Dimensions: 146 x 115 x 48 mm
- Accessories: AC/DC adapter, Charger, Carrying case, Calibration certificate, Traceability system figure.
Available ranges : 1000 Nm or 2000 Nm.
Operation for the calibration of torque wrench.
Mechanical support equipped with a double linear guide for the calibration and the control of release or direct reading torque keys which allows the application of the load in a gradual and continuous way, by respecting the reference norm ISO 6789: 2017.
Block made of aluminium section.
Adaptable to all types of torque key.
Reduce the effort of the operator and allow to keep the torque applied constant by ensuring a better precision and repeatability of the measurements.
Motorized test stand for determining and testing the opening and closing forces of screw caps, used for bottles, cans, cosmetic products etc.
Adjustable rotation speed : 3 - 90 degree/sec.
Sample Height From 140 to 340 mm.
Option Rotary encoder (-RA is at the end of the model).
