Torque Verification/Calibration
-

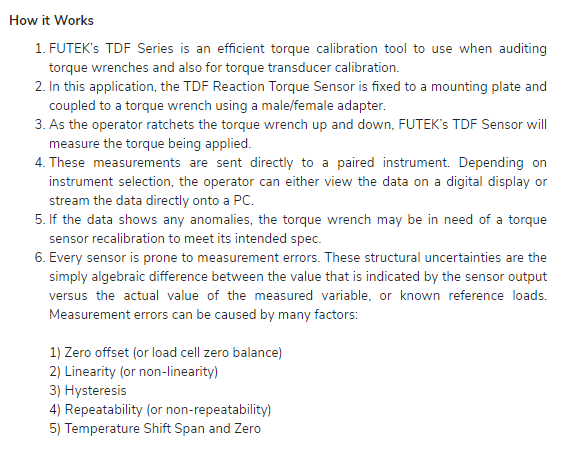

FUTEK’s TDF Series is an efficient tool to use when auditing torque wrenches.
-

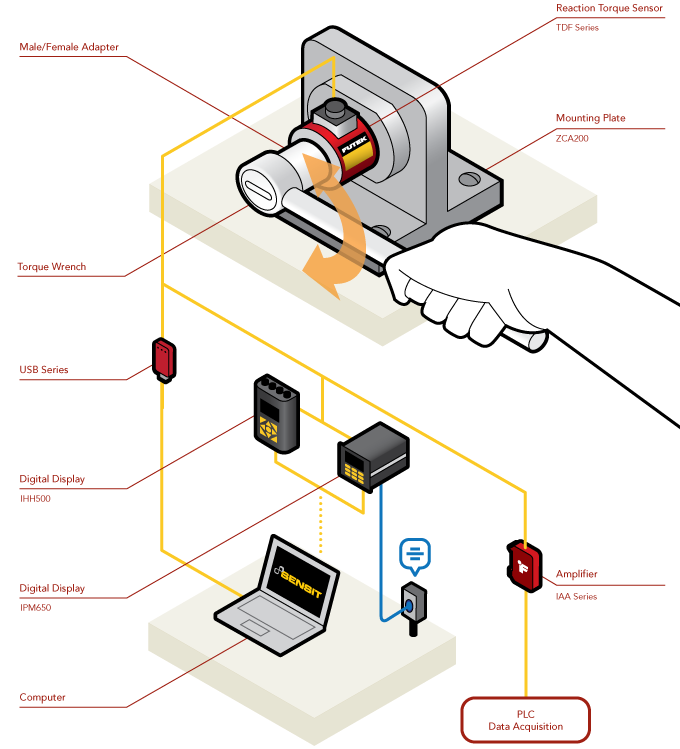

In this application, the TDF Reaction Torque Sensor is fixed to a mounting plate and coupled to a torque wrench using a male/female adapter.
-
As the operator ratchets the torque wrench up and down, FUTEK’s TDF Sensor will measure the torque being applied.
-
These measurements are sent directly to a paired instrument. Depending on instrument selection, the operator can either view the data on a digital display or stream the data directly onto a PC.
-
If the data shows any anomalies, the torque wrench may be in need of recalibration to meet its intended spec.
