Single Axis Inclinometer



Sensel Measurement commercializes and designs a large range of mono axis inclinometers intended for a lot of applications.
We offer a large range of measurement from ±2° to ±80°, with linearity below 0.2% of the measurement range.
Our sensors are delivered with their calibration sheet, on which you will find linearity and the value of the output signal on the whole measuring range.

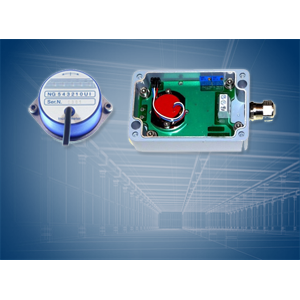

The housing cases include single axe sensors from the SM-N and SM-NG series.
They are built up on request, allowing you to choice and calibrate the outgoing signal (Tension or current) according to the tilt range needed by your application.

Single Axis Inclinometer

Active filters

Robust pressure die cast aluminium with an integrated sensor (SM-N & SM-NG).
Measuring uniaxial  inclination, Output signal 0-5V.
Degree of Protection IP 67.
Sensor and signal conditioner electrically isolated from housing.
Temperature drift compensation.
Insensitive of interference frequencies.

See more
  • Pressure die cast aluminium sensor housing with an integrated sensor (SM-N, SM-NG).
  • Measuring uniaxial inclination
  • Output signal 4-20mA.
  • Degree of Protection IP 67.
  • Sensor and signal conditioner electrically isolated from housing.
  • Temperature drift compensation.
  • Insensitive of interference frequencies.
See more
  • Extra robust, pressure-, saltwater- and corrosion-proof stainless steel housing integrated sensor (SM-N & SM-NG).
  • Measuring uniaxial acceleration
  • Output signal 0-5V or 4..20mA.
  • Degree of Protection IP 68.
  • Sensor and signal conditioner electrically isolated from housing.
See more
  • Measuring range : 360°
  • Resolution: 0.01°.
  • Linearity: ±0.25°.
  • Response time: ~0.3 sec
  • Output: RS485 signal
  • Operating Temperature : -40 to +85°C
  • Storage temperature: -45 to +90°C
  • Wiring: Shielded cable 1m, Ø 4.6 mm
  • Dimensions: 67 X 54.8 x 21.6 mm
  • Weight: ~110 grams
See more
  • Robust pressure die cast aluminium with an integrated sensor (SM-N & SM-NG, SM-B).
  • Measuring uniaxial acceleration or inclination, Output signal 0-5V and two open-collector output switches.
    Degree of Protection IP 65.
  • Sensor and signal conditioner electrically isolated from housing.
  • Temperature drift compensation.
  • Insensitive of interference frequencies.
See more
  • Capacitive liquid based inclinometers with integrated sensor electronics.
  • Measuring range ±10, ±30, ±80°.
  • Resolution < 0.001 %.
  • Degree of protection  IP 65.
  • High long-term stability
  • High accuracy and signal-to-noise
See more
  • Inclinometers with integrated 0-5V signal conditioner for inclination measurement.
    Measuring range ±5, ±10, ±30, ±45, ±70°.
  • Resolution < 0.01 %.
  • Degree of protection  IP 65.
  • High long-term stability.
  • High accuracy and signal-to-noise
See more

 Integrated sensor electronics including signal conditioner, 0-5V output signal.
Measuring range ±10, ±30, ±80°.
Resolution < 0.01 %.
Degree of protection  IP 65.
High long-term stability
High accuracy and signal-to-noise.

See more

Integrated sensor electronics including signal conditioner, 4-20mA output signal.
Measuring range ±10, ±30, ±80°.
Resolution < 0.01 %.
Degree of protection  IP 65.
High long-term stability.
High accuracy and signal-to-noise.

See more
  • Capacitive liquid based inclinometers with integrated sensor electronics.
  • Measuring range ±10, ±30, ±70°.
  • Resolution < 0.01 %.
  • Degree of protection  IP 65.
  • High long-term stability.
  • High accuracy and signal-to-noise.
See more
