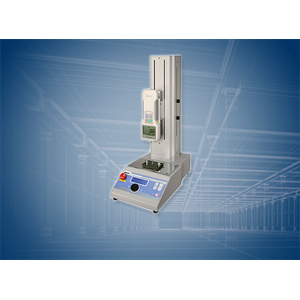

Motorized Test Stand
Measurement range : 5, 50, 100N
Resolution : 0.1%
Accuracy :
- Force : ±0.2% of full scale ±1 digit
- Displacement : ±0.1 mm ±1 digit
Units :
- Force in N, Kgf or Lbf
- Displacement in Mm or Inch
Sampling frequency : 1000 Hz
Maximum sample size : 70 mm
Displacement distance : 100 mm
Displacement speed : 0.1 to 10 mm/sec
Output : USB, USB Flash
Operating temperature : 0 to +40°C
Operating humidity : 20 to 80 %RH
Weight : 8.5 kg
Size : 185 x 300 x 400 mm
Vertical motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 500 N.
Travel speed from 10 to 300 mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 270 mm.
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 1000N.
Travel speed from 6 to 180 mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 300 mm.
Vertical motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 5000N.
Travel speed from 10 to 300mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 340mm.
Vertical motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and Tension measurement up to 500 N.
Travel speed from 10 to 300 mm/min.
Timer and counter unit for endurance tests.
Function : Manual mode, Continuous mode.
Travel distance 245 mm.
Vertical motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and Tension measurement up to 1000, 2500, 5000 N.
Travel speed from 10 to 300 mm/min.
Timer and counter unit for endurance tests.
Function : Manual mode, Continuous mode.
Travel distance 290 mm.
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 1000N.
Travel speed from 6 to 180 mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 285mm.
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and tension measurement up to 3000N.
Travel speed from 8 to 240 mm/min.
Function : Manual mode, Single mode, Continuous mode.
Power AC100V to 240V, free input.
Travel distance 295mm.
Horizontal motorized test stands for single and continuous tests with infinitely adjustable travel speed for compression and Tension measurement up to 500 N.
Travel speed from 10 to 300 mm/min.
Timer and counter unit for endurance tests.
Function : Manual mode, Continuous mode.
Travel distance 245 mm.
This motorized test stand has been customized and equipped with a large table to best suit the testing of large samples. The height and position can be easily adjusted with bolts to suit the sample. The quick tightening nut improves the efficiency of the work.
