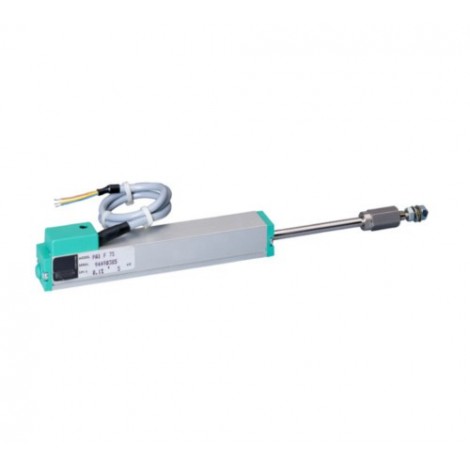

PA1 : Linear position sensor from 0 to 25, ..., 150 mm.

  • Measuring range from 0 to 25, 50, 75, 100, 150 mm.
  • Mechanical linkage using joint with take-up of play, M4 thread.
  • Independent linearity up to ± 0.05%.
  • Infinite resolution.
  • Protection IP40.
Log in to your account to display prices
account_circleSend to a friend

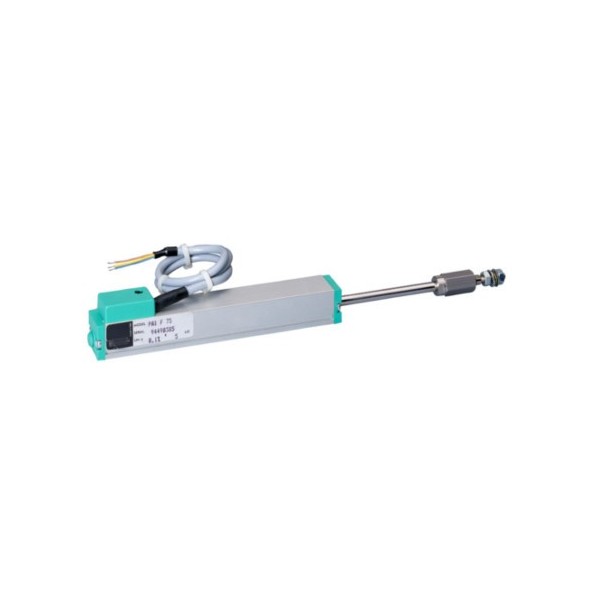

PA1 : Linear position sensor from 0 to 25, ..., 150 mm.

PA1 : Linear position sensor from 0 to 25, ..., 150 mm.

  • Measuring range from 0 to 25, 50, 75, 100, 150 mm.
  • Mechanical linkage using joint with take-up of play, M4 thread.
  • Independent linearity up to ± 0.05%.
  • Infinite resolution.
  • Protection IP40.



Applications

> <

The transducer’s compactness makes it suitable for installation in small spaces and for detecting small shifts. The joint with up-take of slack and M4 threading provides greater tolerances in movement. Installation is simplified by the lack of electrical signal variation at output outside theoretical electrical stroke. Ideal for small mechanical devices, valves, and test tools and benches.

PA1
