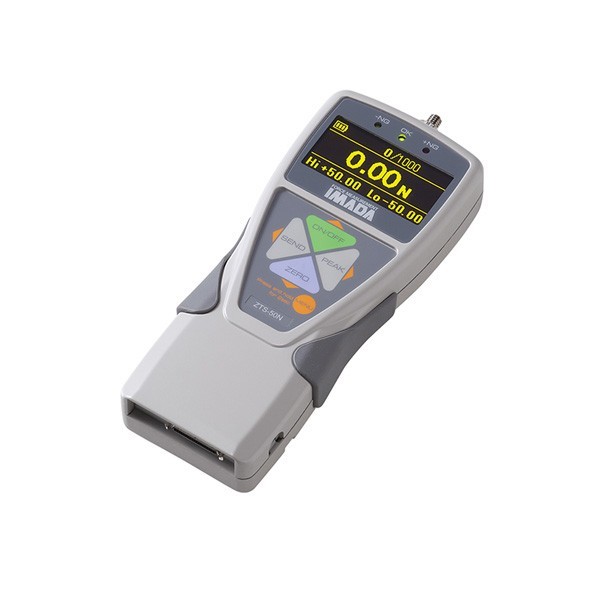

ZTS/ZTA : Digital Force Gauges +/-2, ..., 5000 N

Digita l Force Gauges for determination of compression and tension forces.
2 operation modes: real time and peak force.
Capacities : +/-2 N, ...,  5000 N.
Accuracy : 0.2% FS.
Sampling rate of 2000 times/sec.
Storage of 1000 values.
Display update time 10 times/sec.
Output signal : RS 232 C, USB, ±2V DC, Mitutoyo Digimatic.
Manufacturers calibration report included.

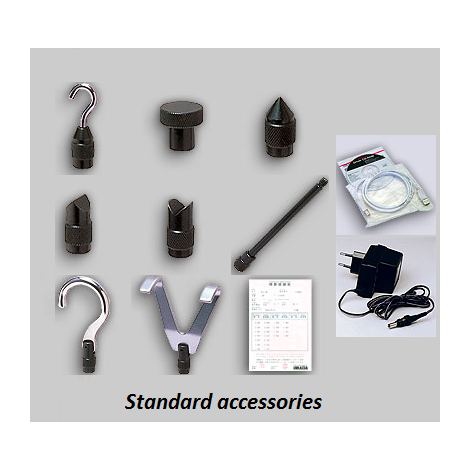

Full set of accessories included

Log in to your account to display prices
Range
account_circleSend to a friend
ZTS/ZTA :  Digital Force Gauges +/-2, ..., 5000 N

ZTS/ZTA : Digital Force Gauges +/-2, ..., 5000 N

Digita l Force Gauges for determination of compression and tension forces.
2 operation modes: real time and peak force.
Capacities : +/-2 N, ...,  5000 N.
Accuracy : 0.2% FS.
Sampling rate of 2000 times/sec.
Storage of 1000 values.
Display update time 10 times/sec.
Output signal : RS 232 C, USB, ±2V DC, Mitutoyo Digimatic.
Manufacturers calibration report included.

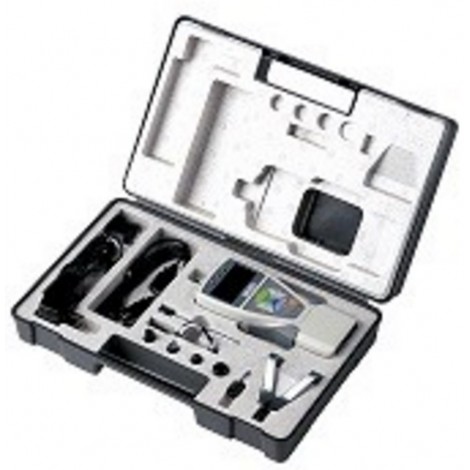

Full set of accessories included



Applications

> <
Digital force gauge for determination of compression and tension forces, usable for numerous applications in a lot of sectors of industry, which need a fast measuring frequency. High quality unit with interface (RS 232, USB, analog and Digimatic) and memory.
Force measuring device with extremly high sampling rate of 2000 times/sec for fast acquisition of peak values. Programmable high/low set-points for go/no-go testing: with color-coded LED display: underrun (-NG) - good (OK) - exceeding (+NG) and relais outputs.
  • Display can be reversed for inverted use; e. g. on vertical test stand.
  • Storage of 1000 values, which can be recalled: on the display, data transfer to a PC, for printing with report.
  • Operates on rechargeable battery and/or AC adapter.  Full set of accessories included.

  • Additional functions in comparison to standard unit ZTS :
  1. Force-displacement measurement: In combination with a test stand with linear scale force-displacement measurements are possible.
  1. Memory: Readings can be transfered from the internal memory to an USB flash drive or directly saved on it (sampling rate 100 times/sec)
  2. High low output: 2 high/low output values can be set; If the reading reaches one of the output values, data will be sent to external devices (e.g. PC, printer) for data recording.
  1. Extended peak mode: Indication of two peak values per measurement
